1840-a output power meter general radio usa

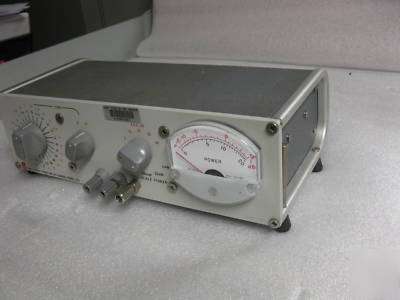

The General Radio 1840A measures audio-frequency power into any desired load. Its important uses include the measurement of:
* Power output of oscillators, amplifiers, preamplifiers, transformers, transducers, and low-frequency lines.
* Output impedance, by adjustment of the load to yield maximum power indication.
* Frequency-response characteristics of amplifiers, transformers, and other audio-frequency devices.

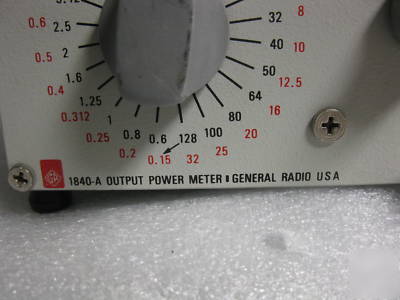

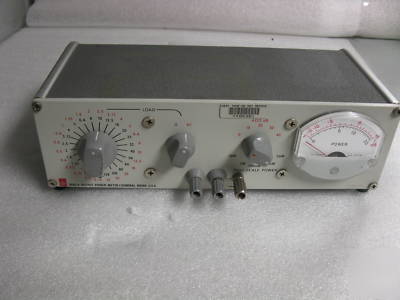

This instrument is basically a multi-tapped audio-frequency transformer with a fixed secondary load. Its two front-panel switches connect eight identical primary windings and six secondary taps in various combinations to provide a total of 48 different primary impedances.
The maximum power rating can be extended for any given impedance with the use of simple T-network attenuator, design data for which are supplied with the instrument.
