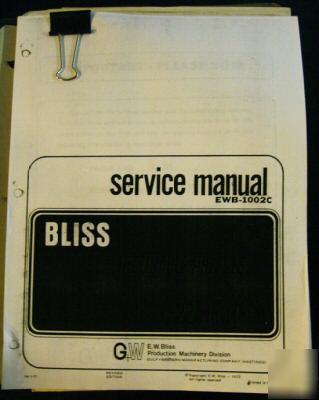

Bliss press c-22 thru c-60 operation, service manual
Bliss Press C-22 Thru C-60 Operation, Service Manual
This includes Installation, Operation & maintenance Manual for Bliss OBI Punch Presses Model C-22 Thru and Including C-60.
Unloading and Lifting Cleaning
Drive Installation. Air Service
InitiaI Lubrication Flywheel Rotation
Cover Installation Point of Operation Guards
Operator Controls On Front of Press Set-up
Summary of Operating Procedures
Initial Cycling of the Press Inch
Initial Run-In Rotary Limit Switch
Top Stop Adjustment Holding Time Adjustment Slide Adjustment
Inclining the Press Gib Clearance
Gib Adjustment Slide Parallelism
Bearing Clearances Total-Bearing Clearance Ball Seat Connection Adjustment Pneumatics
Air Clutch and Brake Counterbalance Cushions (optional)
Lubrication, General Bijur System Manual Lubrication Lubrication Chart
Note: We also have schematics for a additional $40.00
