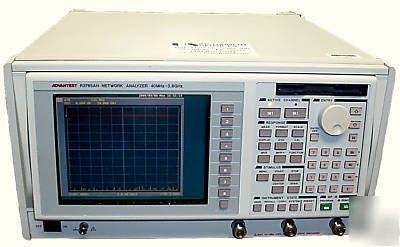

Advantest R3765AH 40MHZ to 3.8GHZ network analyzer
Advantest R3765AH 40MHz to 3.8GHz Network Analyzer
* Type A 1 Port Source with Dual Channel Measurement Option. No 2 Port Measurements.
The Advantest R3765AH network analyzer is an instrument which measures the complex transmission and reflection characteristics of two-port devices in the frequency domain. It does this by sampling the incident signal, separating the transmitted and reflected waves, and then performing ratios that are directly related to the reflection and transmission coefficients of the two-port. Frequency is swept to rapidly obtain amplitude and phase information over a band of frequencies of interest.
Advantest R3765AH network analyzers utilize synthesized-frequency sources to provide a known test stimulus that can sweep across a range of frequencies or power levels. Advantest R3765AH network analyzers also can perform ratio measurements (including phase), which require multiple receivers. The Advantest R3765AH can provide a wealth of knowledge about a device under test (DUT), including its magnitude, phase, and group-delay response.
* Built-in signal separator
* 4-chan/8-trace
* Hi-sweep: 0.15ms/pt
* BASIC programmable memory (1MB)
* Save register capacity (2MB)
* Faster BASIC processor speed
* Limit lines CDMA IF filter analyzer functions
* Wide Dynamic Range: 100dB
* Output Accuracy : 0.5dB
