Varian turbo-v 70D pump 9699362 with TV70PCB controller

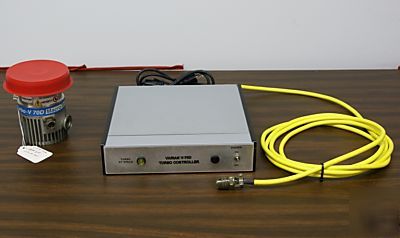

This Varian Turbo-V 70D turbo pump and controller set is used, but in excellent working order. The set has been thoroughly inspected and tested by our technician and we are providing a 30 day warranty*.

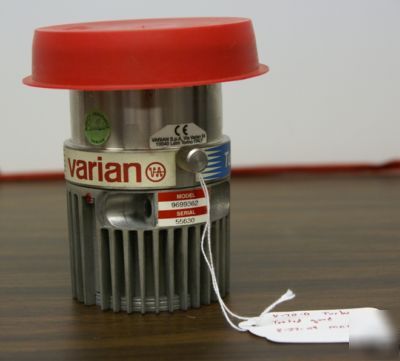

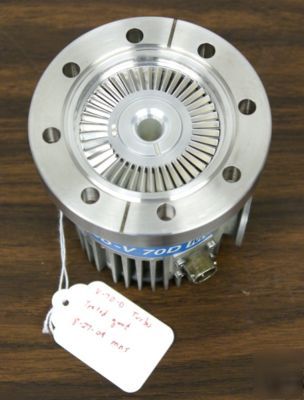

The Turbo-V 70D pump is available in four versions. The difference between the versions lies purely in the high vacuum connection. This particular unit is a Model 969-9362 with ConFlat 4.5 external diameter high vacuum flange. (See more specs at the bottom of this listing.)

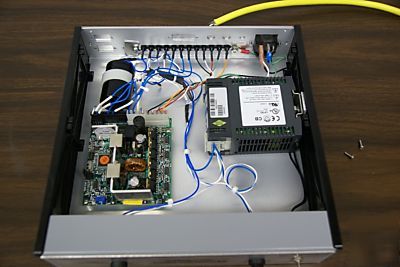

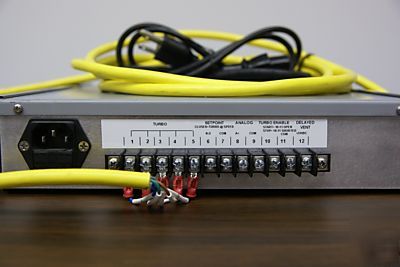

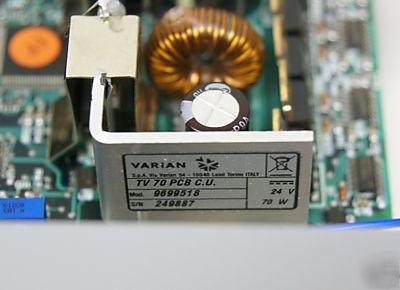

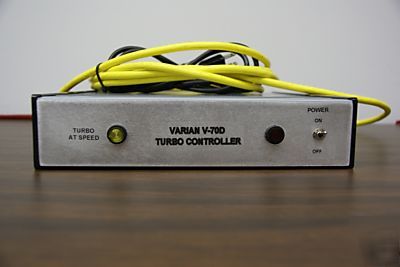

The controller is a Varian TV70 PCB board (9699518) housed in a custom (not Varian brand) enclosure along with a power supply, indicator lights, and connection points as shown. The pictured connecting cable for the pump and power cable for the controller are also included.
The Turbo-V70 PCB controller is a microprocessor controlled, solid-state, frequency converter with self-diagnosis and protection features. The controller drives the Turbo V-70 pump series by controlling the voltage and current with respect to the speed reached by pump. It incorporates all the facilities required for the operation of the Turbo-V70 pump series: pump start/stop, digital current and speed control, and analog signals for external indicators.
Pumping speed (l/s) With CF 4.5:
Base pressure with recommended mechanical fore pump:
1 x 10-9 mbar (8 x 10-10 Torr)
with recommended diaphragm fore pump:
Cooling requirements: Natural air convection; Forced air or water optional
Operating ambient temperature: + 5 C to + 35 C
Lubricant: permanent lubrication
- Voltage 20.4 to 32.2 Vdc with 2 Vpp max ripple
- Voltage 42 Vac nominal 10%, 3-phase
