Eico 950B resistance-capacitive-comparator bridge w/man

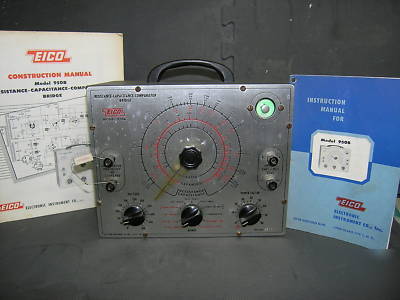

with both the Instruction & Construction Manuals.

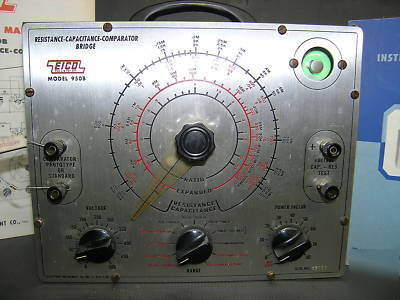

This is a one owner device that was used by my father. It is in excellent working condition with all of the original parts. All of the switches and controls function as they should along with the Magic Eye visual null indicator. The case is in good shape and shows very little ware.
This is a highly flexible ac-powered bridge which measures Capacitance in the range from 10 mmf to 5000 mmf in 4 ranges, and Resistance from .5 ohm to 500M ohm in 4 ranges. The Comparator has 1 range with a ratio of .05 to 20 (400 to 1). DC polarizing voltage (for leakage tests) is from 0 to 500 volts continuously variable. Power Factor has 1 range 0-80%. Tubes used are, 1-1629 and 1 6x5. Overall dimensions 8x10x5.
