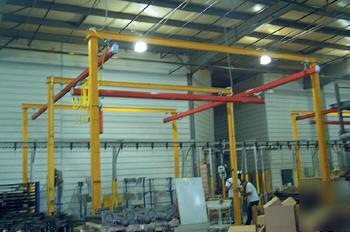

1/4-Ton Self-Supporting Bridge Crane B1520-500
Model Number For This Listing: B1520-500
1/4-Ton Self-Supporting Bridge Crane B1520-500
The system is composed of modular units so that the components can be reused when the layout is changed. The system does not require any electrical power. The overall height is 14 feet.
For a typical installation of a standard Self Supporting Bridge Crane you will need the following:
1. A fork truck or hoisting means to unload the Self Supporting Bridge Crane from the freight truck and set it into place.
2. A smooth, level, and adequately strong concrete surface on which to mount the Self Supporting Bridge Crane.
3. Concrete anchors, a masonry drill, a masonry bit, hand tools, grout, and steel shims. Consult the building's architect or facility engineer to determine the best size and type of hardware with which to anchor the machine to the floor.
4. An appropriate power supply circuit and electrical disconnect matching the motor voltage and current requirements. The end-user is responsible for supplying the branch circuit s required ground fault and short-circuit protection.
To install a standard Self Supporting Bridge Crane:
1. Anchor the frame to the floor through the 11/16 holes located in the base plates.
2. Shim and/or grout under the full length of the frame sides.
3. Make permanent connection to the power supply, using an appropriate wiring method.
4. Clean up any debris, and verify that all of the information/safety/warning labels are in good condition.
Find Your Model Details Below:
