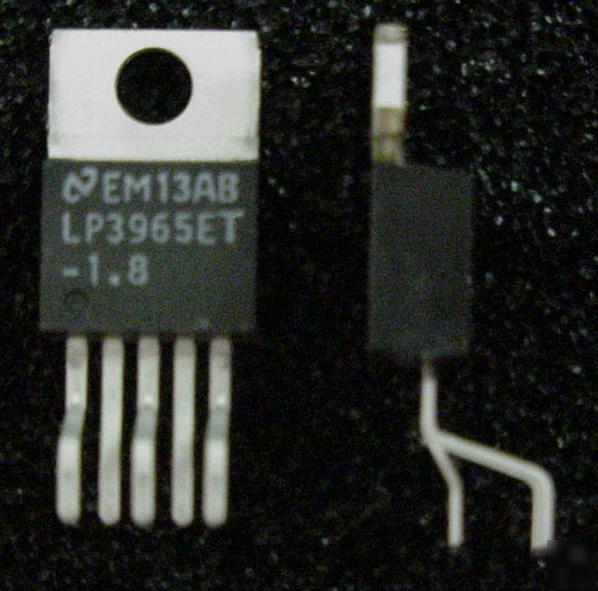

LP3965ET-1.8 ultra low dropout regulator lot of 5
LP3965ET-1.6 - 1.5A Fast Ultra Low Dropout Linear Regulators by National Semiconductor.
DESCRIPTION: The LP3965 series of fast ultra low-dropout linear regulators operate from a +2.5V to +7.0V input supply. These ultra low dropout linear regulators respond very fast to step changes in load which makes them suitable for low voltage microprocessor applications. The LP3965 is developed on a CMOS process which allows low quiescent current operation independent of output load current. This CMOS process also allows the LP3965 to operate under extremely low dropout conditions.
* Regulator Type: Single Output
* Regulator Topology: Positive Fixed
* 15 A quiescent current in shutdown mode
* Guaranteed output current of 1.5A DC
* Output voltage accuracy 1.5%
* Sense option improves better load regulation
* Extremely low output capacitor requirements
* Overtemperature/overcurrent protection
* 40 C to +125 C junction temperature range
* Package/Case: TO-220-5, Bent, Staggered Leads
* Microprocessor power supplies
* GTL, GTL+, BTL, and SSTL bus terminators
* High efficiency linear regulators
* Other battery powered applications
These are in very good condition - from original manufacturer's tubes. [Note: One part sells for $3.45 at Digi-Key.]
