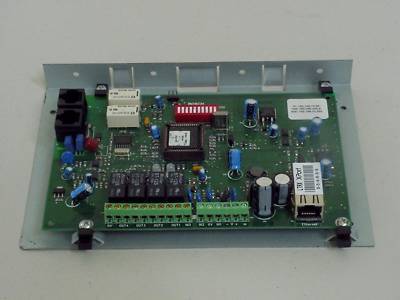

Bosch C900V2 dialer capture ip module
This unit was used for a short time for software development for an alarm over IP system
and was working fine at the time.
The C900 Dialer Capture Module links an alarm panel s
digital dialer to a host computer. One side of the C900
connects to the Public Switched Telephone Network
(PSTN) and the digital dialer s telephone company
interface, and the other side to the host computer s RS-232
When the dialer has something to report, the C900 provides
the signals and voltages necessary to simulate a connection
to the central station through a PSTN. The C900 then
decodes the transmitted digital dialer message and
presents the decoded signals to the host computer. When
the host computer acknowledges receipt of the message,
the C900 transmits an appropriate acknowledge message
to the dialer. True end-to-end security is maintained in this
High speed message transmission
Full data communication, including user numbers and zone numbers
Frees telephone line during status checks and alarm events
No changes needed to existing panel
No learning new system prompts or programming
Proactive monitoring with conventional alarm panels
Constant heartbeat status signal
Works with control panels using a standard digital dialer format made by most every manufacturer, not just Bosch panels
Dimensions: 8.3 cm x 14 cm (3.25 in. x 5.5 in.)
Temperature (Operating): 0 C to +49 C (+32 F to +120 F)
Voltage Range: 9.6 VDC to 15.0 VDC
