Mastech HY3010D linear dc power supply 0-30 v @ 0-10 a

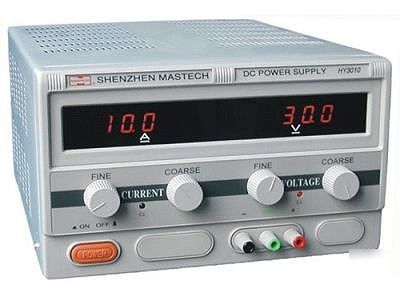

MASTECH HY3010D HQ VARIABLE LINEAR DC POWER SUPPLY
VARIABLE VOLTAGE: 0 TO 30 Volts + VARIABLE CURRENT: 0 TO 10 Amps
The HY3010D variable 0 to 30 volts at 0 to 10 AMP DC power supply is of very high quality construction by Mastech. Excellent for regulated power requirements with the variable 0-30 volt 0-10 amp output. Other uses include lab, science projects or any other use where stable voltage up to 30 volts is required. For the variable output the voltage is variable from 0 to 30 volts and the current is also variable from 0 to 10 amps. The digital LED meters display the actual voltage and current within 2 percent.
SPECIFICATIONS FOR THE HY3010D:
Output Voltage: 0 - 30V @ 0-10A
Output Current: 0 - 20 Amps
Constant Voltage / Constant Current
Voltage and Current Variable
CV<0.01%+1mV, CC<0.2% + 1mA
CV<0.01% +3mV, CC<0.2% +3mA
CV<2mV r.m.s, CC <10mA, r.m.s
constant current and short-circuit protection CV 0.1%+5mV(I>6A) CC 0.5%+20mA(I>6A)
Voltage indication accuracy:
LED 1%+2digits, analogue display 2.5%
Current indication accuracy:
LED 2%+2digits, analogue display 2.5%
CV 0.02%+10mV(I 6A) CC 0.5%+10mA(I 6A)
CV 0.1%+5mV(I>6A) CC 0.5%+20mA(I>6A)
Digital Voltage and current meters built in with Voltage resolution: 2.5% of display reading;
2.5% of Current resolution: display reading
0 - 102 F ( 0 -40 C), relative humidity: <90%
Size: 14 1/4" X 10 1/4" X 6 1/2"
