Hp 489A microwave amplifier 1.0 - 2.0 gc - on sale
HP 489A MICROWAVE AMPLIFIER - NOW ON SALE!!!
EXCELLENT CONDITION, FULLY OPERATIONAL - GUARANTEED!
PLUS, 7 DAY RETURN FOR REFUND IF NOT FULLY SATISFIED

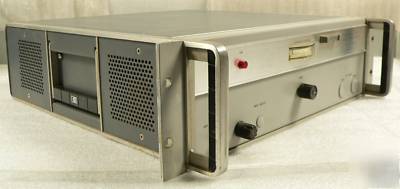

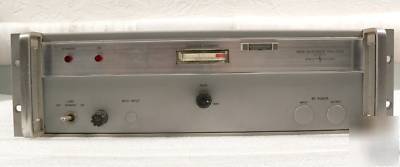

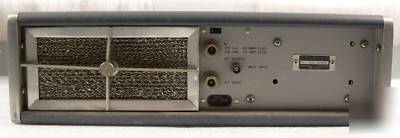

The 489A Microwave TWT Amplifier covers the 1 to 2GHz frequency range with 1 W output and 30 dB gain. Input/output impedance is 50-ohms, type N female connectors. Sensitivity: modulation input of >-20 V peak reduces RF output by >/=20 dB from DC to 50 kHz. Frequency response is DC to 500 kHz (3 dB), pulse response is <1 ?s rise and fall times. Features include front-panel gain adjust, cathode current meter, and modulation input.
Please contact Bryce with any questions:
Tel.: 435.635.3352 / Fax: 435.635.3298
