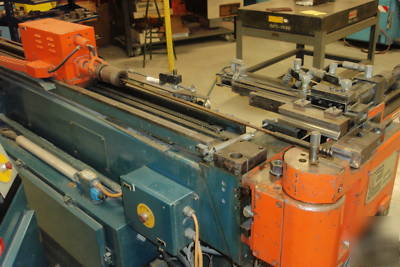

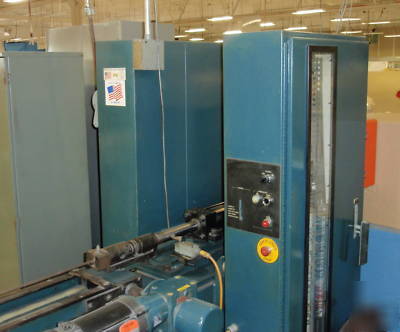

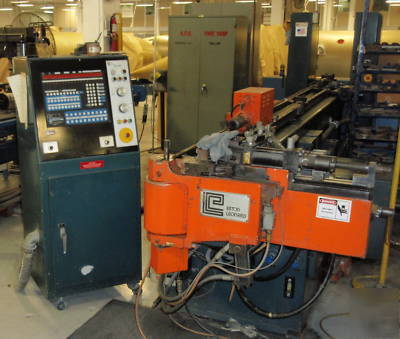

Eaton leonard vb 150 hs rh tube bender, 20 hp, tools


Eaton Leonard VB 150 HS RH Tube Bender, 20 HP, Lots of Tooling!, 440V - 1987, S/N VB-15-HS-R191-MT-04-87.
* Clockwise Rotation - Right Hand
* Max. Tube Bending Capacity - 1 1/2" X .140 Wall Thickness
* Capacity, Pipe Schedule 80 - 1"
* Max. Centerline Radius - 8"
* Bend Arm Rotation - 195 Degrees
* Max. Tube Length to Tangent - 11'3"
* Maximum Tube Length with Loader 10'
* Hydraulic Mandrell Extractor

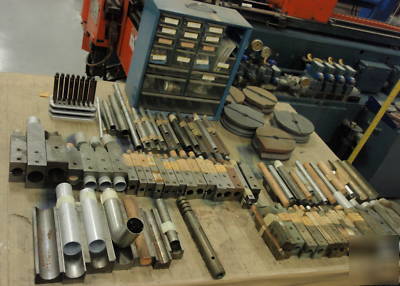

* Tooling that comes with the unit includes: Approx. 130 Wiper Dies - 35 Bronze Wiper Dies from 1/2 x 1 up to 1 1/4 x 3 3/4, some new but all in good shape; Approx. 110 Steel Wiper Dies from 3/8 x 1 1/4 up to 3 5/8 x 1 1/2; PLUS Approx. 15 Rt/Lt Hand Bending Dies ( 1/2 x 1 1/2 up to 1 x 3), Bronze and Steel Mandrells and Mandrell repair parts, a wide selection of misc. holders, a set of center pins, clamp dies, a cabinet of replacement balls, and other miscellaneous spare parts. Please call for detailed list of tooling - (***)-579-4510, X119 Jim.
The machine is now in storage and available for immediate delivery.
