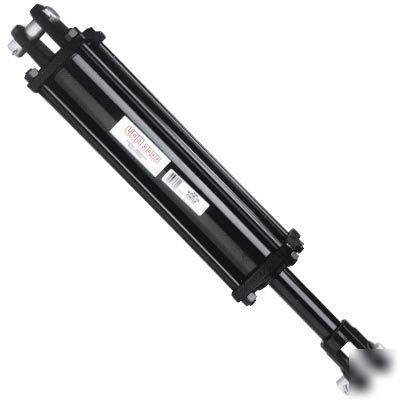

3000 PSI H-D Tie Rod Hyd. Cyl. 2 1/2" Bore, 24" Stroke
Built tough for agricultural and industrial applications. 3000 PSI model is designed to withstand shock loads of up to 6000 PSI. Durable ductile iron cast components. 90 durometer O-ring seals with anti-extrusion rings for positive sealing throughout the cylinder. High-tensile steel shaft is precision ground, polished and hard chrome plated. Cylinder can be single or double acting. Attach one port for single and both ports for double acting. Max. PSI: 3,000, Bore Diameter (in.): 2 1/2, Stroke Length (in.): 24, Closed Pin Center (in.): 34 1/4, Shaft Diameter (in.): 1 1/4 Pins & Retainers: All feature high-tensile steel, zinc plated, with hairpin retainers. Ports: Double-ported NPTF for greater assembly flexibility. Cylinders assembled with ports inline unless otherwise stated. Piston Nut: Heavy-duty, torqued, self-locking piston nut holds piston firm under high-cycle loading. Piston: Precision-machined, ductile iron provides a malleable bearing surface for extended life. Piston Seal: 90 durometer O-ring with antiextrusion backup washers for positive piston sealing under high loads. Tie-Rods: High-tensile steel to prevent failure at high pressure. Cylinder Shaft: High strength, hard chrome-plated shaft provides extended cylinder life in harsh applications. Tube: Precision-finished skive and burnished heavy wall steel tubing for extended seal and cylinder life. Tube Seal: 90 durometer O-ring with antiextrusion backup that prevents leakage under high pressure and cycle loading. Rod Seal: 90 durometer O-ring with antiextrusion backup washer providing long-wearing, positive seal. Rod Cap & Clevis Cap: Ductile iron comes with drilled oil passages, offering increased bearing surface for high shock and side load applications. Rod Wiper: Metal-encased Nitrile, preventing contaminants from entering cylinder Threaded Shaft (on ASAE Cylinders): To accept optional mechanical stroke control on 8in. stroke ASAE cylinders only (not applicable to 5in. bore cylinders). Rod Clevis: Ductile iron comes with 360 thread contact area and positive set screw locking device, able to withstand continuous high loads without wear or fracture.
