Motorola MTS2000 flashport 800MH radio police fire MOD2

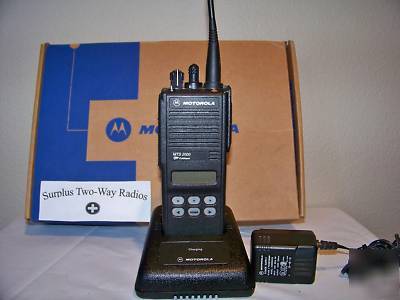

1 Motorola MTS2000 flashport 800mhz 160 channel top display two way radio (H01UCF6PW1BN) flash H38
Radios get bench tested to power on, send and receive.
Radios is in good used condition with no cracks or broken parts.
Companion product to the MCS 2000 Mobile
allows operational knowledge to be transferred
On/Off Volume Rotary Select Switch
16-Position Mode Select Rotary Switch
Programmable Top (1) & Side (3) Mounted Buttons
Programmable Three-Position Toggle Switch
Coded/Clear Programmable Two-Position
Weather Sealed Universal Connector
Detachable Belt Clip and Antenna
Quick Disconnect Accessory Capable
Internal Noise Cancelling Microphone
Ultra-High Capacity Nickel-Cadmium Battery
SECURENET Digital Voice Encryption Capable
Button Press Acknowledgement Tone
Native Language Displays (English, French,
Portuguese, Italian, German, Spanish)
Nickel-Cadmium Battery FM APPROVAL INFORMATION (Optional):
6 to 9 Volts NTN7147 (ultra-high capacity).
40 C to +85 C NTN7147 and NTN7144.
HxWxD Dimensions*: Model Weights: Battery Part FM Battery
Physical Characteristics: MTS I, II, III MTS I MTS II MTS III Numbers Part Numbers
6.30 x 2.34 x 1.49 10.3 oz. 10.9 oz. 10.9 oz.
16.0 cm x 5.9 cm x 3.8 cm 292 gm 309 gm 309 gm N/A N/A
With Ultra-High Capacity Battery:
6.30 x 2.34 x 1.54 20.1 oz. 20.1 oz. 20.1 oz. NTN7144 NTN7147
16.0 cm x 5.9 cm x 3.9 cm 570 gm 570 gm 570 gm (Standard) (Optional)
* Note: Dimensions reflect measurements taken at the widest points on the radio unit. They do not reflect every width and depth point on the radio.
Typical Performance Specifications (all specifications are per EIA 316B unless otherwise noted).
Specs listed are based on channel spacing of 30 kHz for VHF; 25 kHz for UHF/800 MHz; 12.5 kHz for 900 MHz. Noise cancellation better than 10 dB (or one-half the amount of background noise).
Bandsplit: 136 MHz Band 403 MHz Band 450 MHz Band 800 MHz Band 900 MHz Band**
136-178 MHz 403-470 MHz 450-520 MHz 806-870 MHz 896-941 MHz
Display Keypad Model Numbers: Model Numbers: Model Numbers: Model Numbers: Model Numbers:
6-Character (Top) No Keypad H01KDD9PW1_N H01RDD9PW1_N H01SDD9PW1_N H01UCD6PW1_N H01WCD4PW1_N
136-178 MHz 403-470 MHz 450-520 MHz 806-825 MHz 896-902 MHz
12.5/20/25/30 kHz 12.5/20/25/ kHz 12.5/20/25 kHz 25 kHz 12.5 kHz
1 to 5 Watts 1 to 4 Watts 1 to 4 Watts 3 Watts 2.5 Watts
(174-178 MHz (512-520 MHz (Max 2.9 Watts)
0.00020% 0.00020% 0.00020% 0.00010% 0.00010%
66 dBW 66 dBW 66 dBW 48 dBW 48 dBW
(Conducted & Radiated) 1.0-4.0 GHz
60 dBW 60 dBW 60 dBW 48 dBW 48 dBW
FM Hum & Noise: (Companion Receiver) 20/25/30 kHz
45 dB 45 dB 45 dB 40 dB 45 dB
40 dB 40 dB 40 dB (HearClear)
2.5/4/5/5 kHz 2.5/4/5 kHz 2.5/4/5 kHz 5.0 kHz 2.5 kHz
Audio Response: (6 dB/Octave Pre-emphasis from 300 to 3000 Hz)
+1, 3 dB +1, 3 dB +1, 3 dB +1, 3 dB +1, 3 dB
136-174 MHz 403-470 MHz 450-512 MHz 851-870 MHz 935-941 MHz
12.5/20/25/30 kHz 12.5/20/25 kHz 12.5/20/25 kHz 25 kHz 12.5 kHz
42 MHz 67 MHz 70 MHz 19 MHz 6 MHz
Sensitivity (12 dB SINAD / 20 dB Quieting):
.28 V / .40 V .28 V / .40 V .28 V / .40 V .28 V / .41 V .28 V / .41 V
75 dB 73 dB 73 dB 72 dB 62 dB
Adjacent Channel Selectivity: 20/25/30 kHz
75 dB 73 dB 73 dB 72 dB 63 dB
74 dB 73 dB 73 dB 78 dB 69 dB
75 dB 73 dB 73 dB 78 dB 69 dB
Frequency Stability: ( 30 C to +60 C; +25 C Ref.)
0.00025% 0.00020% 0.00020% +0.00025% +0.00015%
500 mW 500 mW 500 mW 500 mW 500 mW
Audio Distortion (At Rated Audio):
