> CA1641-20 function generator

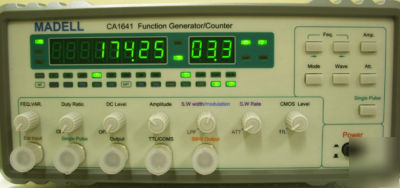

CA1641-20 function generator
* Frequency raqnge: 0.2Hz-20MHz, both the function generator and the frequency counter.
* Output signals: symmetrical or non-symmetrical sine, square and triangle waveforms.
* Output signal levels: 20Vpp at 1M ohm, 10Vpp at 50 ohm.
* LED readouts of frequency and voltage levels.
* Internal or external frequency sweeping.
* Light weight, easy to carry around. Size: 8.5"x4"x10".
* Include: user's manual, two BNC cables.
sine,square,triangle, pulsewaves
50Vp-p, 1Ap-p, CA1640P-20
single frequency, sweeping
0.5%, max fluctuation may reach 1.5% at some frequencies
0dB, 1Vp-p~10Vp-p, 10% accuracy
20dB, 0.1Vp-p~1Vp-p, 10% accuracy
40dB, 10mVp-p~100mVp-p, 10% accuracy
60dB, 1mVp-p~10mVp-p, 10%
triangle linearity: >90%
Square: <5% at 10kHz, 5Vp-p, rising time<17nS
Every flash indicates the completion of a measurement
output signal symmetry adjustment
selection of function output, sweeping or counter mode
sweeping range adjustment
sweeping time adjustment
selection of output waveforms
output amplitude adjustment
output signal offset adjustment
input low pass filter, used in frequency counter mode
input attenuation, used in frequency mode
