3.5" wotan table-type horizontal boring mill #25099

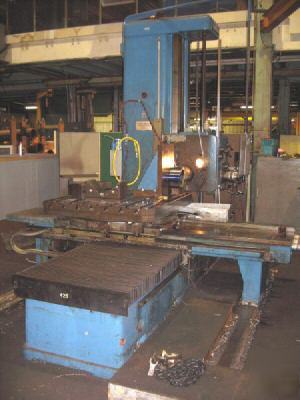

3.5" WOTAN TABLE-TYPE HORIZONTAL BORING MILL
New 1965, Serial No 52065, Model B90
43" x 49" Rotary Table w/360-Degree Rotation
Outrigger Runway Supports for Table & Saddle
Spindle Diameter, Main................. 3.5"
Spindle Taper.......................... #5MT
Spindle Travel, Main (W-Axis).......... 28"
Table Cross Travel (X-Axis)............ 54"
Spindle-Head Vertical Travel (Y-Axis).. 49"
Saddle In/Out Travel (Z-Axis).......... 38"
Table Dimensions (Overall) W x L....... 43" x 49"
(21) Spindle Speeds, Range............. 14 to 1600 RPM
(27) Spindle Feeds, Range.............. .0012 to .48 IPR
Main Motor, KW Rating.................. 8.5 KW
PRICE: F.O.B. OUR WAREHOUSE........... $12,500.00
