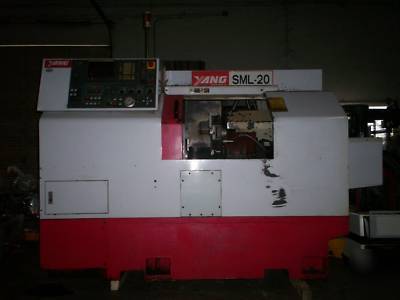

1998 yang sml-20 cnc lathe - fanuc 0TD 32 bit control
1998 Yang SML20 - Excellent conditions with chip Conveyors
* 10/15Hp (7.5/11 Kw) High Torque Spindle Motor
* Manual Grease Lubrication System
* Single Range Variable Speed Motor
* High Precision Star Linear Guide-ways
* Tailstock With Programmable Quill
* Heavy Duty Cast Iron Base, Saddle & Headstock
Swing Over Bed ............................................ (480 mm) 18.90 Max. Turning Dia. x Full Length .................... (200 mm x 508 mm) 8.0 x 20 Distance Between Centers ....................... (600 mm) 23.62 Spindle Nose ............................................. ASA A-2-6Spindle Bore ......................................... (62 mm) 2.44 Bar Capacity ................................................. (51mm) 1.97 Turning Tool Shank Size .................................. (20 mm) 0.75 Max. Boring Bar Size ..................................... (40 mm) 1.25 Turret Index Time (Station to Station) ......... 0.5 Sec.Tailstock Base Traverse ............................... (420 mm) 16.73 Tailstock Quill Traverse/Diameter/Taper ..... (50 x 65 mm) 1.97 /2.56 /M.T.#4Floor Space (L / W) ........................................... (2735 mm / 1984 mm) 107.68 / 78.11 Net Weight ......................................................... (2550 kgf) 5,620 Lbs.Gross Weight .................................................... (2900 kgf) 6,392 Lbs.Power Required ............................................... 208/220 VAC, 3 Phase, 50 Amps Axis Positioning Repeatability Traverse Rapid RateX Axis 0.0006 /4 0.0001 6.93 1,181 IPMZ Axis 0.0008 /12 0.0002 20.5 1,181 IPM
Parts - We provide for all Yang and Yam models:
For parts inquiry, please emails: ****@yangmachines.com or ****@yangmachines.com.
BMV 1050, BMV 1060, BMV 1000, BMV 1100,BMV 1500, BMV 1600, KL-21, CK-1, CK-1A, CK-2, CK-2A, CK-3A, CK-3B, CK-5A, CL-40, CL-1628, CL-1640, CNC-3A, , CNC5A, HSMC-400, HSMC-650, MH-400, MH-630, ML-15A, ML-25A, ML-28A, ML-55A, ML-60A/W, ML-300, MV-3A, MV-3A/S, MV-5A, SL-12, SML-30, SMT-500, SMH-450, SMV-600, SML-12, SML-20, SMV-600, SMV-1000, SV-1000A and engine lathes.
