Low profile electric/hydraulic scissor lift table
Low Profile Electric/Hydraulic Scissor Lift Table

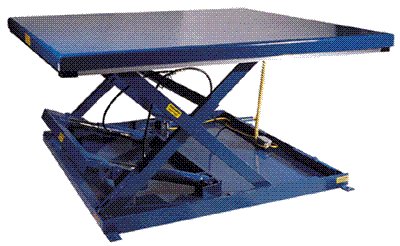

Vestil Low Profile Electric/Hydraulic Scissor Lift Table EHLTX-1-39
Low Profile Electric/Hydraulic Scissor Lift Table EHLTX-1-39
Load and unload skids with a pallet jack without the need for a pit when using the optional approach ramp. Superior engineering features rugged dependability. Safety features includes electric perimeter pinch point guard, emergency stop velocity fuse in cylinders, fused 24V hand held control and maintenance supports to name a few. Remote power unit comes complete with a plastic cover to protect motor from dust and debris. Note motor voltage and phase when ordering.
* Choose a platform width of 36" to 60" and a length of 53" to 60".
* 1000 - 3500 pound capacity
* four sided electric pinch point guard is standard
* Remote 2 HP power unit comes complete with protective cover
* Industrial quality, 56 Frame, 2 HP Motor delivers best torque with minimal amperage draw and maximum life
* Voltage - 208-230/460 Volt, 60 cycle, 3 phase
* Cast iron pump with integral valving including pressure relief valve, check valve, down solenoid valve, and pressure compensation flow control valve.
* NEMA-4 Push button hand control
* 24 Volt, fused control circuit.
* Hydraulic actuators have internal brass velocity fuse w/ stainless steel spring
* Conveniently located air bleed screw on hydraulic actuators
* Replaceable deck, main axle pins and bearings
* Rollers - Cold finished steel with case carburizing to .010 inch with Rockwell "C" 40
* Pins - Cold rolled and finished to bearing manufacturer's specifications
* Bearings - Self-lubricating with compressive strength of 44,000 psi
* Swaged on high pressure hose fittings, Pump intake/return hose is 1/2"
Low Profile Scissor Table Video
Low Profile Scissor Table With Approach Ramp Video
EHLTX- (width)(length) - Capacity - Raised Height
Low Profile Electric/Hydraulic Scissor Lift Tables
Approach Ramps for Low Profile Scissor Tables
