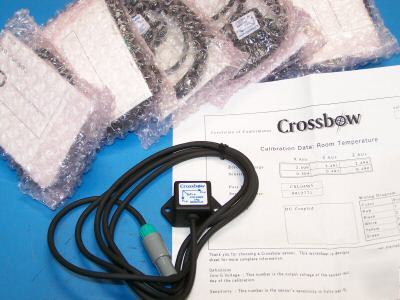

Crossbow 3 axis accelerometer CXL04M3 +-4G 5VDC no rsv
The CXL04M3 is a triaxial silicon micromachined accelerometer system packaged in a lightweight module. It offers wide dynamic range, excellent frequency response, operates on a single +5 V power supply, and is easy to interface to standard data acquisition systems. The CXL04M3 is built around three industry-standard, hermetically sealed ADXL05 accelerometers, ensuring proven long-term reliability.
The CXL04M3 requires only a single +5 V supply line, and provides a direct high-level analog voltage output. The outputs require no external signal conditioning electronics, and may be directly interfaced to an A/D or other data acquisition hardware. A typical application of the CXL04M3 is shown in Figure 1. The module should be securely attached using screws or adhesive.
Compared to traditional piezoelectric and piezoresistive accelerometer technologies, the CXL04M3 silicon micromachined sensors offer equivalent performance at a significantly lower cost.

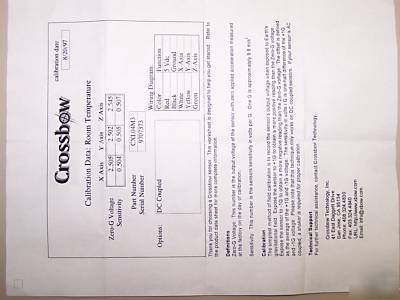

This item is NEW. Includes manufacturers Certificate of conformance.
