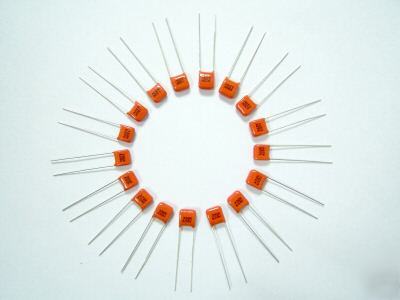

.006UF @ 630V "orange dip" film capacitors : qty=30
* High stability of capacitance abd DF versus temperature and frequency.
* Compact body size for easy installation in tight spaces: 9mm wide, 11mm high, 5mm thick
* EXTRA Long (35mm) leads made of solder-plated oxygen free Copper (OFC) wire for easy "under chassis" installation and excellent solderability.
* Withstand Voltage: 250% of Rated Voltage (ie 1575 volts) for 1~5 seconds.
* Operating temp. range :-40 to +85 C.
* Capacitance tolerance: +/- 10%.
* High pulse rise (dv/dt) and suitable for large current circuits.
* Dissipation Factor: 0.08% max. at 1KHz, 20C
* Insulation Resistance: >30,000Mohm
