Bodine electric model 855 motor dc motor control

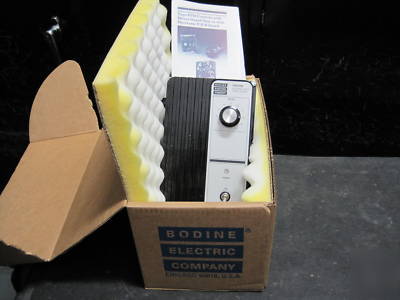

YOU ARE LOOKING AT A NEW NEVER USED BODINE FILTERED SCR DC BASIC SPEED CONTROL MODEL 855 IN ORIGINAL PACKAGE.
LESS THAN HALF THE ORIGINAL PRICE!
Filtered SCR DC Basic Speed Control Model 0855
* Operates off 115 Volt AC line, 50/60 Hz.
* Filtered DC output for cooler motor operation, longer brush life, lower audible noise, and wider speed range.
* Dip switches to easily calibrate control for different motor sizes.
* Line voltage and temperature compensation minimizes speed drift.
* NEMA 12 enclosure for environmental protection.
* Trim pots on PC board to adjust torque limit, minimum speed limit, maximum speed limit, acceleration time, and speed regulation.
* Speed can be adjusted manually using speed pot mounted on enclosure.
* Terminal block inside enclosure for quick line and motor connection.
* Fuse holders for line and motor inside enclosure (both fuses supplied).
* Toggle switch on enclosure to turn AC power on/off.
* Lamp on enclosure indicates AC power on.
View a selection guide for this series here
* Rated for continuous operation in 40 ambient with no additional heat sink.
* Drives Bodine 130V Permanent Magnet DC Motors.
* Drives 90V "SCR duty" and 130V "PWM duty" permanent magnet DC motors made by other manufacturers.
* IP44 sealing kit model 0895 for protection against splashing water.
* View a replacement parts list for model 0855 in PDF format here
Filtered SCR DC NEMA 12, Basic Speed Control FPM
Continuous Output Current (Amps)
