New cuno iceassure 3 water filtration system-
IceAssure3, today's answer for protecting ice macking equipment from the harmful effects of sediment, chlorine, and scale. Each IceAssure3 utilizes Cuno's proven valve-in-head design that automatically stops the water flow simply by twisting the cartridge while ice machine is operating.
All IceAssure3 systems use our proprietary SQC (Sanitary Quick Change) cartridges with scale inhibition, these cartridges utilize Cuno's special blend of high absorption carbon to maximize sediment, chlorine, taste and odor removal.
* SQC-Sanitary quick change cartridges.

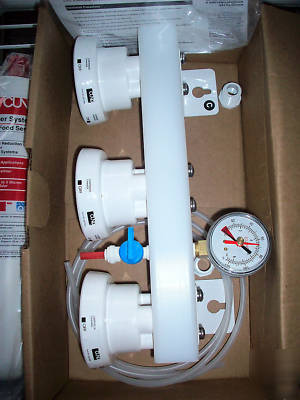

* Automatic shut-off valve in filter head.
* 1/2" NPTF horizontal connection. Field reducible with supplied 3/8" NPTF bushings.
* Choice of 2 cartridge technologies for different water conditions. (-1 micron modified carbon block) (-5 micron G.A.C.)
* Premium blend of high adsorption activated carbon.
* Time released scale inhibiting system.
* Fast and sanitary cartridge changes.
* Allows cartridge changeout without interruption of machine operation.
* Designed for large and small cuber connections.
* Cuno's ability to match various water conditions. (-For municipally treated water.) (-For well water and heavy dirt load.)
* Highly effective removal of chlorine, bad taste and odors.
* Protects equipment against scale and downtime.
Two Models For Different Water Conditions

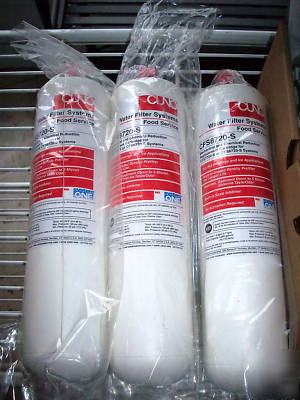

* IceAssure3-1 Triple action CFS8112-S cartridge featuring 1 micron graded density modified carbon block for sediment, chlorine reduction. Plus, premium performance scale inhibitor.
For ice machines 1400 lbs. and up. (635 kg)
Dimensions: 18-1/2" H x 12-1/4" W x 3-3/4" D (47cm H x 31.3cm W x 9.5cm D)
Connections: 1/2" NPTF female, 3/8" NPTF bushings supplied
Max. Pressure: 125 psi (862 kPa)
Min. Pressure: 25 psi (172.4 kPa)
Capacity: IceAssure3-1 30,000 gallons (113,562 liters) NSF class 1 chlorine reduction
Ice Machine Sizing Guide: 1400 lbs. and up (635 kg) IceAssure3
