> New 7.5 hp rotary phase converter -
New 7.5 hp rotary phase converter -
Phoenix Phase Converter Call Us Toll-Free

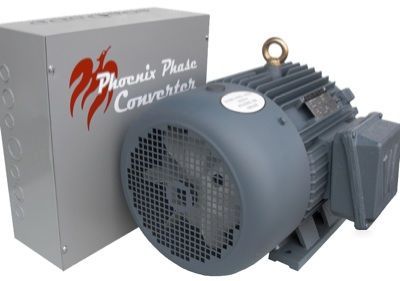

* 7.5 HP Rotary Phase Converter
* Nickel Plated Power Distrubution Block For Secure Connection
* Grows as your business grows.
Totally Enclosed Fan Cooled (TEFC)
ISR (Inverter Spike Resistance)
Quick Facts (See full feature list)
* CNC Grade, Balance Within 2% (+/-)
* Oversize Components for Durability (Heavy Duty)
* Heavy Duty Oil filled Capacitors
* TEFC ( totally enclosed fan cooled )
Click Here To Check Equipment Load Type!
This 7.5 HP Phase Converter can Start & Run the following motor loads:
(Drill, Bench Grinder, Small Milling Machine.)
(Belt Sander, Hobart Mixers, Meat Grinder.)
(Iron Worker, Lathe, Compressor.)
(Largest motor to start must meet Medium, Hard or Resistive)
* 5 HP Max Single Motor Load Start Capability
Or the following Resistive & Current loads:
* 11 Amps CNC (vfd spindle & servos)
The output of the Rotary Phase Converter is closer to being a true 3-phase source that the Static Converter. This provides more power to the tool motor, and also brings it up a speed faster. The Rotary Converter is best served when you have a motor which is started and stopped frequently, and you need the full power of the motor. Furthermore, a single Rotary Converter can drive several different 3-phase tools, whereas a Static is built for a specific machine.
Precision Voltage Balanced Within 2%
Inverter Spike Resistant magnet wire wound motors with ISR wire are up to 100 times more resistant to voltage spikes and high frequencies, in addition Class F insulation is the highest grade of insulation available. Plus the winding is wrapped with a high quality cotton tape. Estimated lifetime is 8500 hours compared to other competitors' insulation with an estimated lifetime is 1800 hours.
Phoenix Phase Converter makes it easy! Installation in minutes! Loose connections can lead to major damages, nuts, and bolts can come loose in time. With a built-in oversized nickel plated power distribution block and set screws you can be sure to avoid corrosion and get a secure connection.
Grow When Your Business Grows
When you get equipment that requires a larger phase converter, you can upgrade your Phoenix Phase Converter too. Just purchase an additional phase converter to easily parallel the two phase converters together. Example: Turn a 20HP into a 40HP or a 20HP into a 30HP.
Extreme Duty, CNC / All-Purpose
Same as Input Voltage +/- 5%
TEFC (Total Enclosed Fan Cooled)
Min. Wire Breaker to Converter
Totally Enclosed Fan Cooled (TEFC) vs Open Drip Proof (ODP)
Totally Enclosed Fan Cooled
TEFC Motors are more reliable. Air flows over the motor and have much more iron for cooling the motor and provide more power.
Totally Enclosed Fan Cooled Motor
Open Motors-Pull foreign objects in, along with the air for cooling. Not good.
How do phase converters measure up to utility three phase?
Three phase power from an electric company is frequently expensive, or often not even available. All features available with three phase power (full load torque, locked rotor, breakdown torque, and full horse power) are available with a phase converter but at a much less expensive cost to the consumer.
Are all phase converters manufactured at equal levels?
Absolutely not! A problem commonly found with a poorly constructed phase converter is that the units are badly balanced with all electrical capacity burdened on one phase of the internal winding. This generates overheating and can lead to a break down of the converter. With our balance being within 5% you will receive nothin but outstanding performance. We also guarantee our converters to run cool and quiet, so you won't have to worry about excessive noise.
How is the accurate Phoenix Phase Converter determined?
Talk to our experienced technician for all sizing requirements at (***)-205-7577.
How long will my Phoenix Phase Converter last?
Longer than the equipment it operates on a general basis. Beacause of the low amperage it continuously runs youcan expect a lifetime of problem free service from our converters.
Do Phoenix Phase Converters cost a lot to operate?
Actually, many utility companies recommend phase converters for the energy saving capability, meaning low costs to you. If you are presently operating on three phase power, switching to a phase converter could reduce your utility costs because you can take advantage of the single phase rate structure and not have to pay an in demand charge (as most companies charge with use of a three phase power).
Do I have to worry about my Phoenix Phase Converter overheating while idling?
No! The care we take in balancing our currents on each winding means you will not have to start and stop your converter to prevent overheating, creating added power expenditure and nuisance, as you would with an unbalanced unit.
Will the Phoenix Phase Converter require an extreme amount of power to start?
No. Our power saving start feature reduces the amount of inrush amperage resulting in a minimum of energy output.
Is it difficult to install my Phoenix Phase Converter?
No. In fact our easy to install because the terminal blocks are easily accessible. Of course if you have any questions at all we have a 24/7 tech support ready to help you. Just call (***)-205-7577.
Arizona Sales must pay Sales Tax 8.1%
We offer a full 5 year warranty against defect on all Phoenix Phase Converters. We also offer free lifetime 24/7 technical support.
View Full Warranty Information PDF File
Once you experience our services you will want to make us your only service provider. Our highly skilled staff offers A/C and D/C electric motor repair, rewinding services, pump repair, and much more with an efficient and fast turnaround.
