White-rodgers controls 90-113

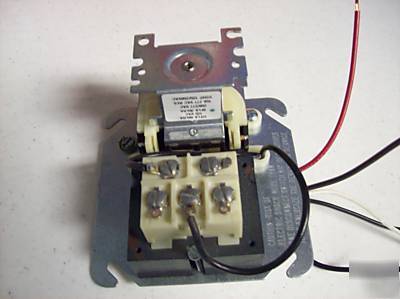

This is a White Rodgers Steveco Fan Control Center. It is a Control transformer and the Blower relay mounted on a 4x4 utility box cover.
Fan Control Center, Primary Voltage 120 Volts, Secondary Voltage 24 Volts, Power Rating 3/4 HP, Power Rating @ 120 VAC 3/4 HP, Power Rating @ 208 to 240 VAC 3/4 HP, Full Load Current @ 120 VAC 13.8 Amperes, Full Load Current @ 208 VAC 6.9 Amperes, Full Load Current @ 240 VAC 6.9 Amperes, Locked Rotor Current @ 120 VAC 82.8 Amperes, Locked Rotor Current @ 208 VAC 41.4 Amperes, Locked Rotor Current @ 240 VAC 41.4 Amperes, Switch Action SPDT.
Full Load Amps @ 120 VAC:13.8.
Locked Rotor Amps @ 120VAC:82.8.
Locked Rotor Amps @ 208 VAC:41.4.
Manufacturer: White Rodgers, Steveco.
Replaces Part Numbers:175-80000 902948, 4-11053-114 P211-4013, 90-113,
