Welded tee cylinder 2500 psi, 3"bore, 12"stroke, 1.5"

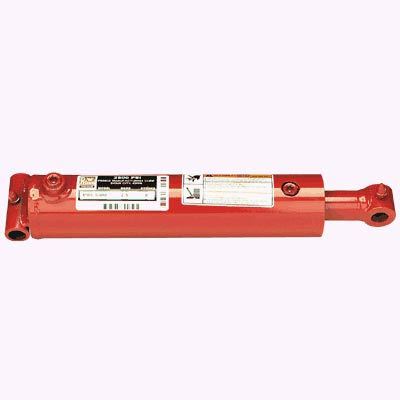

Welded Tee Cylinder 2500 PSI, 3"Bore, 12"Stroke, 1.5"
Universal end mountings. A favorite for contractors, industrial, and agricultural applications. All steel welded construction: weld-on cross tube. Heavy wall steel tubing, ground and polished chrome piston rod with pin eye, cast iron piston. O-rings and back up washers, trac-type gland retainer. Maximum working PSI is 2500, bursting PSI is 5000. 2 1/2in. bore cylinders have 3/4in. pin holes. The 3in. and 3 1/2in. bore cylinders have 1in. pin holes. The 4in. bore cylinders have 1 1/4in. pin holes. 2 1/2in. bore cylinders have 3/8in. working ports. The rest have 1/2in. working ports. Double acting. Max. PSI: 2,500, Bore Diameter (in.): 3, Stroke Length (in.): 12, Closed Pin Center (in.): 20, Shaft Diameter (in.): 1 1/2
