Hendrick pro-v 126 vertical beam saw
Hendrick PRO-V 126 Vertical BeamSaw
Machine Model: PRO-V 126 Vertical Beam Saw Series
Machine Type: Vertical Beam Saw with 120 Maximum Length - Adjustable
Table Surfaces: Vinyl Clad Ply Board
Depth of Cut: Full 3 Depth of Cut (Adjustable) with 14 Blade Capacity
Length of Cut: Fully Adjustable Length of Cut at Control Console
Maximum Blade Size: 14 Diameter with 1 Bore. Set-up Blade Included
Main Blade Motor: Heavy Duty Industrial Saw Motor, 9 HP, 230VAC, 3PH, 60Hz
Saw Carriage Traverse: Variable Speed Automatic Saw Carriage Traverse by AC Inverter with Speeds of 10 to 50 fpm; 2 HP Saw Carriage Traverse Motor; Fully Adjustable Length of Cut.
Carriage Way System: Heavy-duty Precision Machined H-Beam Providing a Straight Line Cut of Accuracy +/- 0.005 Over The Entire Length.
Material Positioning: Three Measuring Bars with Total 5 Manual Flip Stops; Precision Machined Heavy Duty Squaring Fences
Three Cutting Modes: Normal, Reciprocating and Single Blade Scoring
Material Hold Down: Full Length Pneumatic Pressure Beam That Provides Enhanced Safety, Superior Dust/Chip Collection and Lower Sound Levels.
Safety: Pressure Sensitive Safety Tape on Both Sides of Hold-Down Beam. Emergency Stop Located on Controller.
Air: 100 lbs. Compressed Air Required @ 4cfm
Evacuation: Excellent Dust/Chip Control via Two 4 Ports

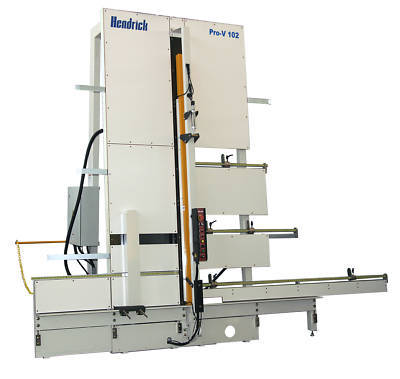

PRO-V 102 (8') Image Shown Below
Delivery: One unit in stock and available for immediate delivery, subject to prior sale.
To learn more about Hendrick PRO-V Vertical Beam Saws view us online @:
