New meterman / amprobe / wavetek 38XR pro multimeter

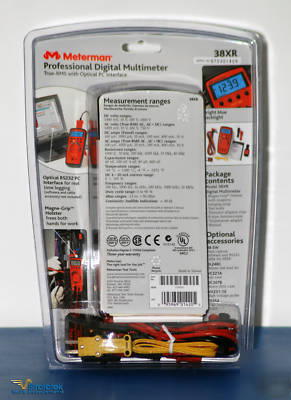

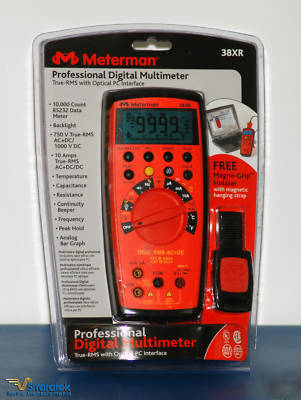

This item is a brand new in box Meterman 38XR multimeter brand new with Optical PC interface and accessories. Meterman has now merged with Wavetek and this division is owned by Amprobe. Actual unit shown.
This item also has a 7 day right of refusal so if you are not satisfied just send the item back and we will gladly refund your money.
Perfect for automation, process control and general plant maintenance. The 38XR features a 10,000 count high resolution display, coupled with a fast updating bargraph, all backlit for low-light environments. Add the optional cable and software to download readings for storage and analysis. The meter comes complete with test leads, K-type thermocouple, manual, spare fuse and battery.
all ranges: (0.25 % rdg + 5 dgt)
750 V range: 45 to 1 kHz: (2.0 % rdg + 10 dgts)
All other ranges, 45 to 500 Hz: (1.2 % rdg + 10 dgts)
All other ranges, 500 to 2 kHz: (2.0 % rdg + 10 dgts)
750 V range: 45 to 1 kHz: (2.5 % rdg + 10 dgts)
All other ranges, 45 to 500 Hz: (1.5 % rdg + 10 dgts)
All other ranges, 500 to 2 kHz: (2.5 % rdg + 10 dgts)
100 A, 1000 uA, 10 mA, 100 mA, 400 mA, 10 A
100 A range: (0.5 % rdg + 10 dgt)
1000 uA to 400 mA ranges: (0.5 % rdg + 5 dgts)
10 A range: (1.5 % rdg + 10 dgt)
100 A, 1000 A, 10 mA, 100 mA, 400 mA, 10 A
100 A to 100 mA ranges: (1.5 % rdg + 20 dgts)
400 mA range: (2.0 % rdg + 10 dgts)
10 A range: (2.5 % rdg + 20 dgts)
AC coupled True RMS specified from 5 % to 100 % of range
100 A to 400 mA ranges: (2.0 % rdg + 20 dgts)
10 A range: (3.0 % rdg + 20 dgts)
AC + DC: AC coupled True RMS specified from 10 % to 100 % of range
1000 , 10k , 100k , 1000k , 10M , 40M
1000 to 1000k ranges: (0.5 % rdg + 8 dgts)
10M range: (1.0 % rdg + 10 dgts)
40M range: (2.0 % rdg + 10 dgts)
40 nF, 400 nF, 4 F, 40 F, 400 F
40 nF, 400 F ranges: (3.0 % rdg + 10 dgts)
400 nF to 40 F ranges: (3.0 % rdg + 5 dgts)
-20 C to 1300 C, -4 F to 2372 F
-20 C to 10 C: (2.0 % rdg + 4 C )
10 C to 200 C: (1.0 % rdg + 3 C )
200 C to 1300 C: (2.0 % rdg + 2 C )
-4 F to 50 F: (2.0 % rdg + 8 F)
50 F to 400 F: (1.0 % rdg + 6 F)
400 F to 2372 F: (2.0 % rdg + 4 F)
100 Hz, 1000 Hz, 10 kHz, 100 kHz, 1000 kHz, 10 MHz
all ranges: (0.1% rdg + 5 dgts)
5 V logic: (2.0% rdg + 10 dgts)
45 Hz to 5 kHz: (0.7 dB + 8 dgts)
5 kHz to 10 kHz: (2.5 dB + 8 dgts)
100 V, 750 V ranges: (3.0 + 200 dgts)
1000 mV, 10 V ranges: unspecified
A/mA input: F0.5 A /1000 V fast-blow ceramic 6.3 x 32 mm
10A input: F10 A /1000V fast-blow ceramic 10 x 38 mm
Any Questions or clarifications...feel free to ask.
