New 4 brand efector proximity switches model #IF0302

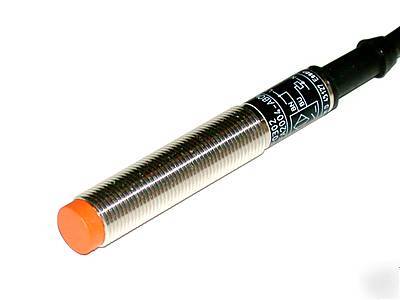

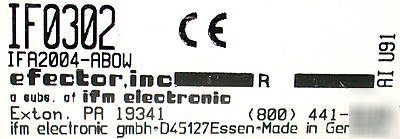

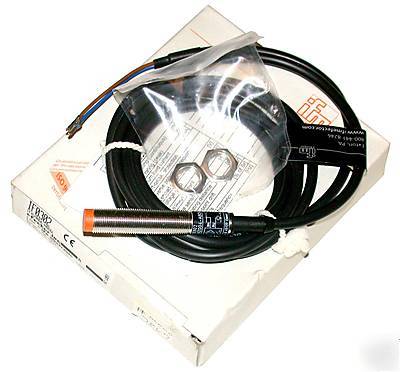

4 BRAND NEW EFECTOR PROXIMITY SWITCHES MODEL #IF0302
Retail cost of more than $114.00/Each.
These are brand new in the box switches and they are fully guaranteed .
Operating voltage [V] 20...250 AC (47...63 Hz)
Current rating (continuous) [mA] 250 AC (...50 C) / 200 AC (...80 C)
Current rating (peak) [mA] : 0.9 A (20 ms / 0.5 Hz)
Reverse polarity protection no
Real sensing range [mm] 4 10 %
Operating distance [mm] 0...3.25
Switch-point drift [% of Sr] -10...10
Correction factors mild steel = 1 / stainless steel approx. 0.7 / brass approx. 0.4 / Al approx. 0.3 / Cu approx. 0.2
Operating temperature [ C] -25...80
Housing material brass Optalloy-plated; active face: PC (polycarbonate)
Connection PVC cable / 2 m; 2 x 0.5 mm
Accessories (included) 2 lock nuts
Sensor and control products for industrial automation applications
Offers non-contact sensing, high accuracy, extreme durability, and resists shock, vibration, and electrical noise
