Crystal group CS500 5U quarter rack industrial server

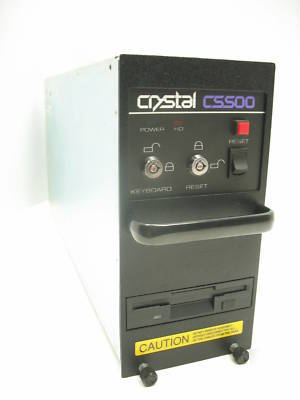

nice working, hardly used, industrial server from Crystal Group, Model CS500, S/N 98031185, P/N A95012. Front panel has keyboard and reset lock switches, sorry keys are not included. Keyboard is in unlock and reset is in lock. This is usually the normal settings. Also on front are power and hard drive LED's. At the bottom of the panel is the 3.5" floppy disk drive.

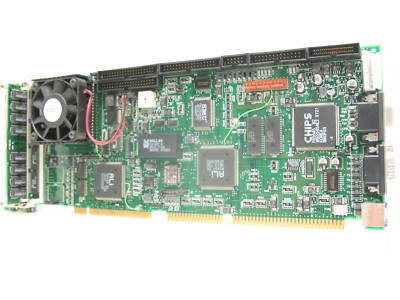

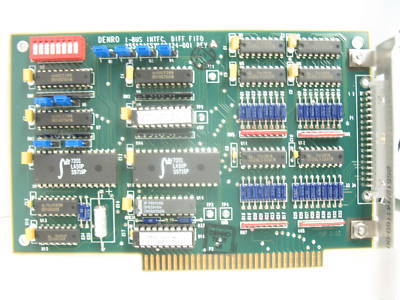

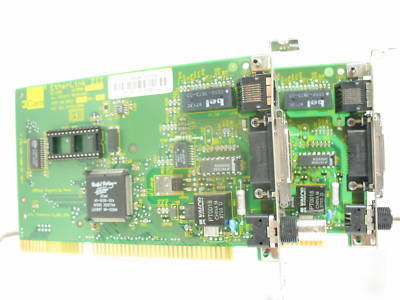

Back panel has a 25 pin printer port at top, a 34 pin male port which is the connection on the Denro I-Bus IntFc, DIFF FIFO card assy. 120424-001, rev. A. Next are the two sets of ethernet connections which are the connections for the 3Com Etherlink III cards. There are two cards. P/N 3C509B-C. Finally the main card connections are attached to a Crystal Group Single board computer, it has a 9 pin RS-232 port and a keyboard connect, and the 15 pin VGA connect. There are two Simm cards mounted on the end. And finally the last component on the backside is a 115VAC imposter plug in. The main power for this Server is 24VDC @ 5 Amps. So don't hook up your AC computer cord, you'll pop a fuse and maybe more. A power supply is not included. The bottomside has compartment covers for the power supply on one end and HardDrive / 3.5" drive access on the other. The harddrive included is a 2.1 GHz.

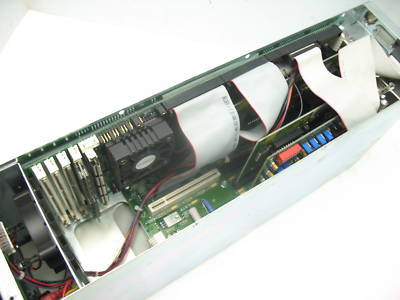

This unit might be unused. There wasn't even any dust stuck to the fan blades or cards when I opened it up this afternoon.
CS500 - 5U Quarter Rack Industrial Server
Pentium 4 2.80 GHz; Intel CoreTM 2 Duo 2.66 GHz
One (1) low-profile 3.5 in. bay
Power switch, CPU reset button, Alarm reset button, Status LEDs
Four (4) card slots, one (1) DB-25, one (1) DB-9, one (1) PS/2
Four (4) 32-bit/33MHz PCI (5V)
One (1) ISA, three (3) 32-bit/33MHz PCI (5V)
Two (2) ISA, two (2) 32-bit/33MHz PCI (5V)
Three (3) ISA, one (1) 32-bit/33MHz PCI (5V)
One (1) 17 CFM (0.5m3/min), one (1) 25 CFM (0.7m3/min)
Front-mount, Mid-mount, Base-mount, Wall-mount
Operating Temperature Storage Temperature
-40 C to 70 C (-40 F to 158 F)
Per Bellcore GR-63-CORE standards; Earthquake VERTIQII 1-50 Hz up to 1.6 G for 30 seconds Office - 0.1 G 1-100 Hz and back to 5 Hz for 90 minute duration
0-4,000m (13,123') MSL 50 C for 6 hours
UL 60950, CSA C22.2-950, IEC 60950
FCC Part 15, Subpart B, ICES-003 (Canada), EN 55022 / CISPR 22,
EN 61000-3-2 - Harmonics, EN 61000-3-3 - Flicker
EN 55024 / CISPR 24, IEC 61000-4-2 - ESD, IEC 61000-4-3 - Radiated RF,
IEC 61000-4-4 - EFT, IEC 61000-4-5 - Surge, IEC 61000-4-6 - RF Conducted,
IEC 61000-4-11 - Voltage dips, interrupts & variations
UL, C-UL, CE (100 & 150 WAC PS are not CE Marked), FCC, ICES-003 (Canadian)
Specific configurations of this chassis have been NEBS Level 3 certified
Military Standards Specific configurations of this chassis have been through MIL-STD testing.
