Unimat milling machine

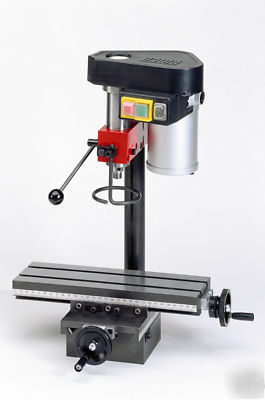

Emco Unimat Milling Machine comprising;
200100 Vertical Mill/Drill attachment plus 1529AA Motor drive unit 230v/1phase/50/60Hz plus 2001OT Coordinat milling table
Fully universal - ie the milling head can be postioned at any angle.
35mm dia solid steel column with keyway to retain postion.
All steel coordinate table with bed size 280mm x 95mm. Leadscrew pitches are 1.5mm. Graduations of handwheels are 0.05mm
The motor drive system is a speed motor 65/90Watt with 4 quick change drive belt positions giving 8 fixed speeds from 130 - 4000rpm
Made in Austria (Motor system Made in Taiwan)
