Solderless wiring terminal lug, amp terminyl #324056

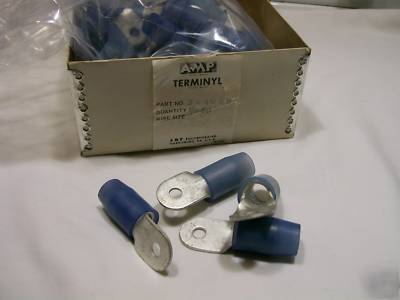

For sale are AMP Terminyl "Solderless wiring devices", terminals, lugs.
They are ring tongue, straight receptacle style, with body style TERMINYL. They are closed barrel, regular wire. They are insulated, insulation support, with insulation diameter (mm[in]) = 14.73 [.580] Max.
Stud diameter is (mm[in]) = 6.35 [0.250], Stud size 1/4 [M6]
Shape is RING-047. Made of copper, with tin finish. The tongue material thickness (mm[in]) = 1.85 [0.073]
Wire range (mm[AWG]) = 41.00 - 60.00; Wire range (CMA) = 83,7000 - 119,500
Industry Standards: Government/ Industry Qualification = YES
Government/Industry Part Number - MS25036-132
RoHS/ELV Compliance = RoHS Compliant, ELV Compliant
Lead Free Solder Processes = Not relevant for lead free process
