Meister TOP10-3 digital readout turret mill bore dro

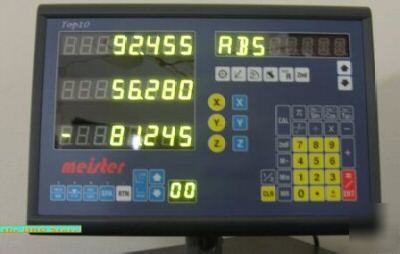

Meister TOP 10-3 Digital ReadOut for mill with 3 pieces of Glass Scales
Includes 3 pieces of linear scales with travel length up to 36 inches.
Price includes door-to-door delivery.
One year warranty direct from factory.
Display box swivel mounting arm & dust cover. English or French operation manual.
Free coolant guards with end caps.
This Belle XZ-15 mill-drill belongs to Hirokazu, Japan.
Linear scales are make to standard travel size:
* Metric: 100, 120, 150, 170, 200, 220, 250, 270, 300, 320, 350, 370, 400, 420, 450, 470, 500, 520, 550, 570, 600, 620, 650, 700, 750, 770, 800, 850, and 900 mm.
* Inches: 4.5, 6.5, 8.5, 10.5, 12.5, 14.5, 16.5, 18.5, 20.5, 22.5, 24.5, 26, 28, 30, 32, 34 and 36 inches.
[For information only: Overall Length, OAL = Travel + 5 inches.]
* 1/2 key - find half the value.
* Recall - recall the last coordinate position which is useful for repeated operations.
* Mechanic Zero Position Memory: re-establish workpiece zero position after power failure
* SRK: Shrink function (for mold making)
* Holes in a straight or oblique line
* Store 99 multiple datumn points.
* Simple R - for machining of arc, or radius on the edge
* Response Speed: 60m/min (198.6feet/min).
* Quantizing error: +/- 1 count.
* Power Source: AC 110 - 220V, 50 - 60 Hz.
* Operating Temperature: 0 ~ 40 deg C.
* Dimension: 10.25" x 7.0" x 2.0"/3.0"
* Resolution selectable (10, 5, 1 um).
* Precision etched glass type
* Every scale has ABS marks.
* Standard 9.8 ft (3m) long armoured cable.
This photo of Meister linear scale on the quill from Gregg (USA) ...
This photo of Meister scale on bench top mill from Sonny ...
Factory also make scales with travel from 40 to 80 inches.
* Delivery time is about 11 ~ 15 days to major cities if there is no delays.
* If you do not receive your article by the estimated time, please contact me and I will follow up.
* Return: I accept return for refund or exchange. Please read the Return Policy below.
