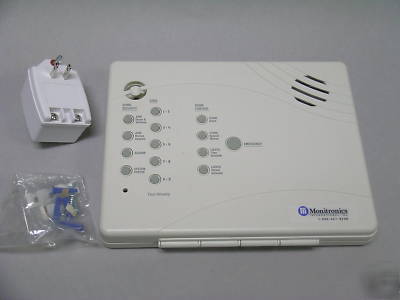

Iti ge 60-776-95R ^ simon 2 cpu security system
MODEL: 60-776-95R- HAS PRIVATE LOGO EASILY REMOVED
THIS COMES WITH THE CPU, TRANSFORMER AND MANUAL
The Simon Security System delivers a lowcost
security panel designed to provide years
of reliable burglary detection, fire protection,
and home automation control. With a built-in
touchpad and a status speaker that provides
for houses, apartments, and
Simon is quick and easy to install thanks to
patented ITI Learn Mode technology that
eliminates cumbersome sensor programming.
The wall-mounted wireless Simon TouchTalk
2-Way RF Touchpad combines a conventional
ITI Learn Mode touchpad with an RF receiver,
speech chip, and voice amplification circuit.
Using remote phone control, you can arm and
disarm the system, control system lights, check
system status, activate no entry delay, or
activate latchkey. With latchkey capabilities,
you can program the panel to dial a pager
phone number in the event that the system has
not been disarmed at a scheduled time.
With built-in capabilities for easy system
expansion, Simon is enhanced through the
addition of optional modules that perform
such functions as controlling lighting and
Simon can be a monitored security system that
sends messages to a central monitoring station
or a numeric pager carried by a designated
user. One remote Interrogator 200 module
may be added to the system to provide
additional security and emergency contact
with the central monitoring station.
Programming is a simple procedure that is
done on-site with the built-in touchpad or offsite
with ITI ToolBox downloader software
24 individual sensor zones with options for up to 2 hardwire zones
319.5 MHz SAW receiver will support all ITI Crystal and SAW sensor line devices
5 user-programmable access codes
Chime feature for monitoring door and window activity
Indoor and outdoor motion sensors
Central station and numeric pager reporting
Event buffer with a time stamp
Panel voice and panel beeps can be disabled
Settings and new accounts can be programmed from off-site using ITI ToolBox
SAW sensors with user-replaceable alkaline batteries
4-button keychain touchpad capability
Up to eight individual light or appliance control units can be installed and controlled from touchpads
(requires X-10 Lamp Modules or appliance modules)
An X-10 Universal module is necessary for garage door opener control
2-button and 4-button SAW and Crystal Keychain Touchpads
TouchTalk 2-Way RF Talking touchpad
