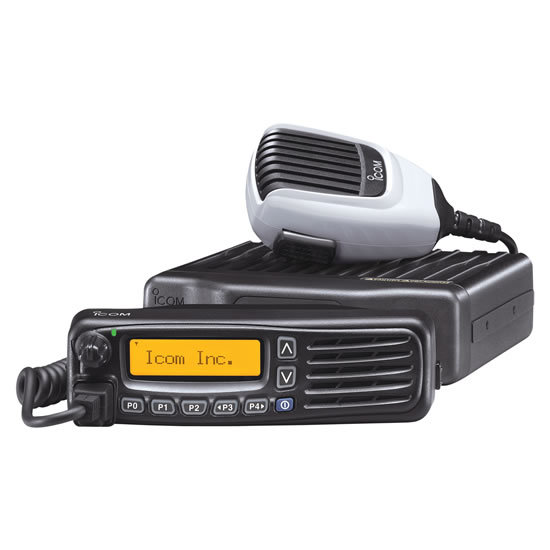

Icom ic-F6061D uhf 400-470MHZ idas ready
* New Radios, will program your channels to your specs no extra charge, trunking, conventional programming is free..software is also included ( you need OPC-1122 ) to program radios not included.
The IC-F6061D is ideal for public safety, transportation and delivery service users. It offers advanced multi-mode operations, improved scanning and flexible installation suitable for mobile and base stations.
Advanced automatic number identification (ANI), selective call (Selcall) and emergency call features are available with the built-in MDC signaling. The PTT ID function sends your unit ID number when you push (or release) the PTT button. The received ID number can be decoded to a user name using the alias table. The selcall enables you to call individual or group users as you desire. The emergency call feature allows you to send and repeat an emergency message to dispatch until the dispatch responds to it. In such a situation, the radio can transmit anything the microphone hears and the dispatcher can monitor the background sound. Radio check, status, message, radio stun, revive and call log are also available.
UT-119HWith the optional UT-119H, the IC-F5061 series provides 6.25kHz digital narrow mode communication that meets the FCC 6.25kHz emission mask requirements for narrow banding, and increases efficiency of channel allocation and use of spectrum. The IC-F5061 series provides 2 optional slots: one for the UT-119H digital unit and one for another option board.
With the optional remote control kit, RMK-3 and separation cable, the front panel of the radio can be detached from the main unit. It allows you flexible installation even in limited installation space. Separation cable length is selectable from 1.9m, 3.0m and 8.0m *.
* 6.2ft, 9.8ft and 26.2ft respectively.
Dot matrix, multi-function LCD
With a high contrast dot matrix display, upper and lower case characters can be easily distinguished. You can change the display setting to show one line and 12 characters, or two lines and 24 characters via programming. LCD backlighting is standard.
4 watts (typ.) front mounted speaker delivers clear and loud audio. The built-in audio compander improves the signal to noise ratio.
IP54 dust-protection and splash resistance (Controller only)
The rugged die-cast chassis and polycarbonate front panel are resistant to shock and vibration. When used with the optional separation kit, the remote control head has dust-protection and splash resistant construction, equivalent to IP54.
Wide frequency range and large channel capacity
The IC-F5061 series covers a wide frequency range in one version
(VHF 136 174 MHz, UHF 400 470MHz or 450 512 MHz). The 512 memory channel capacity with 128 zones allows you to divide and store a variety of flexible channel groupings.
Basic LTR /Conventional mode operation
Group, selective, and phone calls are all available in LTR mode. The beep on receive function informs you with a beep sound when an individual call is received
Multiple 2-Tone, 5-Tone signalings
The built-in 2-Tone and 5-Tone capabilities allows you to send a tone code with your call and decode multiple tone codes on a channel. 40 pairs of CTCSS/ DTCS memory channels are available.
The voting scan detects the S-meter level of repeater stations and automatically selects the strongest station or the first station to exceed the preset S-meter level, useful for roaming between 2 or more repeater sites. Primary and secondary channels are also programmable for the priority scan.
In the normal mode scan, you can select a scanning list independent to the channel setting. In the mode slave setting, the scanning list is automatically selected according to the operating channel.
Built-in inversion-type voice scrambler
The built-in inversion type voice scrambler provides secure conversation. When a more secure system is required, the 32 code non-rolling-type voice scrambler UT- 109R and 1020 code rolling type UT-110R are available as an option.
The IC-F5061 series has a D-SUB 25 pin ACC connector for connecting various external devices.
* Improved scanning functions including Tx channel, talk back and nuisance delete
* 8 DTMF autodial memories and ANI function with DTMF
* Heavy duty, dynamic microphone HM-148
* Radio stun and kill functions disable a lost or stolen unit over the air
* Busy repeater lockout function
* Surveillance function temporarily turns off the LED backlight and beep sound
* Convenient key assign sticker is supplied
* Microphone hanger action programmable
* Flash CPU for future upgrade
* The IC-F3061/ F4061 series is the handheld equivalent model
