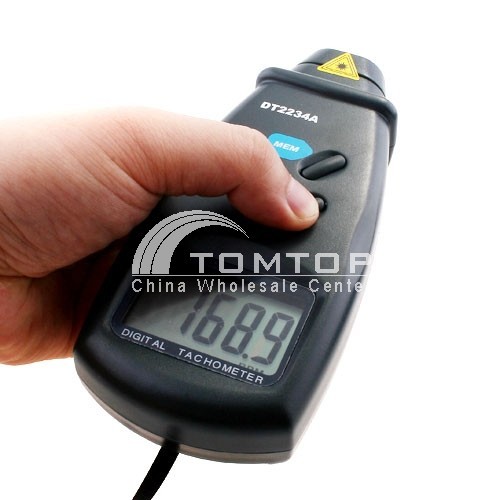

Digital laser photo tachometer contact rpm tach H1292
Digital Laser Photo Tachometer Non Contact RPM Tach H1292
Wide measuring range & high resolution
The last value/max. value/min. value will be automatically stored
Display: 5 digits, 18mm LCD displaying
Test range: 2.5 to 99999 RPM (r/min)
Resolution: 0.1 RPM (2.5 to 999.9 RPM), 1 RPM (over 1000 RPM)
Sampling time: 0.8 sec.(over 60 RPM)
Memory: max. value, min. value last value
Detecting distance: 50 to 500 mm
Time base: 6MHz crystal oscillator
Power supply: 3* 1.5V AA (UM 3) batteries
Power consumption: approx. 40mA (operation)
Operation temp: 0 to 50 (32 to 122 )
Net Weight: approx. 194g (including batteries)
