#2 cincinnati-milacron tool & cutter grinder #25298

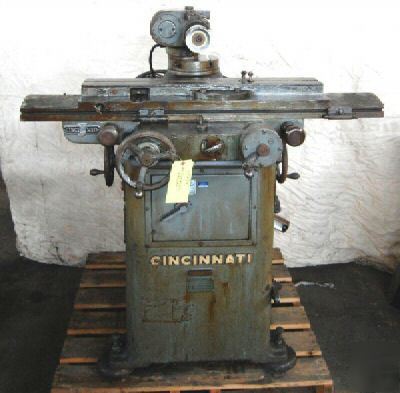

#2 CINCINNATI-MILACRON TOOL & CUTTER GRINDER
New 1957, Serial No 1D2T5E-31, Model LL,
360-Degree Swivelling Wheelhead (Filmatic Bearings)
Swing Over Table, Maximum.............. 10"
Work Length Maximum Capacity........... 27"
Table Longitudinal Travel.............. 16"
Table Cross Travel..................... 8"
Table Working Surface, W x L........... 5.25" x 36"
Table Swivels, Degrees................. 180-DEGREES
Grinding Wheelhead Cross Range......... 11.5"
Grinding Wheelhead Cross Range
Gained by Wheelhead Eccentricity....... 3.5"
Grinding Wheelhead Vertical Travel..... 10.5"
Grinding Wheelhead Swivel, Degrees..... 360-DEGREES
Grinding Wheel Surface-Feet-Minute..... 5985 & 6110 SFPM
(2) Grinding Spindle Speeds............ 3890 & 6530 RPM
Wheelhead Motor, Horsepower/RPM........ 1 HP/3400 RPM
Electrical System...................... 230-460/3/60
Floor Space Required, W x D............ 5'9" x 4'9"
Overall Height......................... 5'
Weight, Approximately.................. 2100 LBS
PRICE: F.O.B. OUR WAREHOUSE........... $1,250.00
All machines/eqiupment subject to prior sale.
