> 5.5" x 31.5" werag cnc dbl-end facing & centering mach
5.5" x 31.5" werag cnc dbl-end facing & centering mach

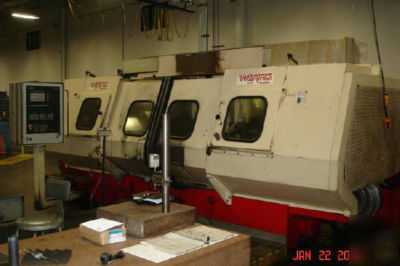

5.5" x 31.5" WERAG CNC DOUBLE-END FACING
New 1995, S/N 0999-0943, Model DZ111-QS-W-08-800
http:// /watch?v=UN9ZF6bLOdI
Siemens Sinumerik 840C CNC Control w Color Graphics
(2) 8 Tool Automatic Tool Changers (1 Each Side)
Self Centering Automatic Vises
Chip Conveyor - Automatic Lube System
Coolant Thru Spindle - Large Assortment of Tooling
Work Diameter Capacity, Minimum........ 0.3937"
Work Diameter Capacity, Maximum........ 5.512"
Work Length Capacity, Minimum.......... 3.15"
Work Length Capacity, Maximum.......... 31.5"
Vise Clamping Range.................... 0.3937" to 5.906"
Spindle Tapers......................... #SK45
Max. Tool Length....................... 12.4"
Max. Tool Weight....................... 22 LBS.
Spindle Speeds, Range.................. 50 to 3695 RPM
Max. Travel per Spindle, Z-Axis........ 15.75"
Max. Travel per Spindle, X-Axis........ 5.906"
Feed Rate, Z-Axis...................... 0 to 0.5906 IPM
Feed Rate, X-Axis...................... 0 to 0.2953 IPM
Rapid Traverse Rate, Z-Axis............ 590.6 IPM
Rapid Traverse Rate, X-Axis............ 295.3 IPM
Spindle Motors......................... 10 HP
Overall Dimensions, L x W.............. 17'9" x 7'7"
Overall Height......................... 7'11"
Weight, Approximately.................. 26,460 LBS.
PRICE: F.O.B. OUR WAREHOUSE........... $49,500.00
