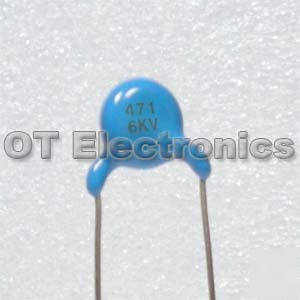

10 x 6KV 470PF high voltage ceramic disc capacitor Y5P
CT81 Series High Voltage Ceramic Capacitor
Flame-resistant insulation coating applied
For high voltage DC power supply application
Operating Temp. Range : -25 C to +85 C
Capacitance : Within the Specified Tolerance at 1KHz 20%, 1.0 0.2Vrms
Dissipation Factor(DF) : DF 2.0% at 1KHz 20%, 1.0 0.2Vrms
Dielectric Withstanding Voltage : 1.5UR for 2 to 5s (Charge/Discharge Current 50mA)
Insulation Resistance : 10000M min at 500VDC and 1 minute electrification
