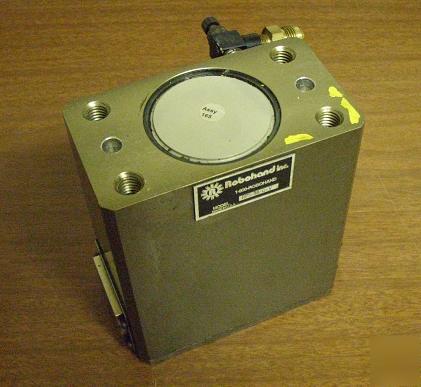

Robohand inc. RPS18 parallel gripper
ROBOHAND RPS18 PARALLEL GRIPPER
F @ 100 psi, 7 bar 600 lbs. 2669 N
Stroke ....................................................... 1.25 in. 31.8 mm
Weight....................................................... 11 lbs. 5.0 Kg
Pressure Range ........................................ 50-100 psi 3.4-7 bar
Cylinder Bore ......................................... 2.500 in. 63.5 mm
Displacement............................................ 4.400 in
Standard Seals ...................................... -30 ~180 F -35 ~80 C
Seals............................................ -20 ~300 F -30 ~150 C
Actuation................................................... 0.51 sec. 0.51 sec.
Accuracy ................................................... 0.003 in. 0.08 mm
