Zarak abacus 1 telephony system portable controller

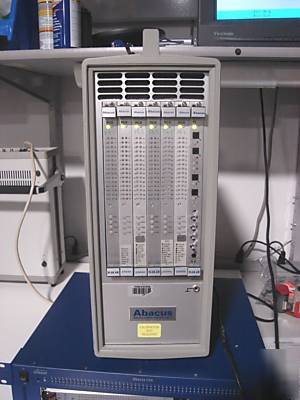

Spirent Zarak Abacus 1 Telephony System Portable Controller
* 1 x PI Card pn 17-01502-08
* 6 x PCG (opt: Call Generator, T1, E1, PRA) pn 81-01507-20
* 1 x PI Rear Card pn 17-01501-06
* 2 x PCI Primary Rate Circuit Interface pn 81-01504-02
* 4 x Analog Circuit Interface pn 81-01502
Abacus1 is a modular and expandable test system that creates telephone traffic (bulk call generator) or switches telephone traffic (central office emulator).
Abacus1 can perform the functions of a call generator and a call switch simultaneously in the same system. Hardware is controlled by an external PC running Abacus1 user interface software under the Windows XP Professional operating system.
Simplify the testing of telephony networks: Test analog and ISDN BRA networks and services with functional and performance testing
Achieve overall cost savings: Provides the user full flexibility in ISDN BRA testing with call generation and switching functionality
Components of Base Subsystem
Portable chassis has SC and CG shelf built in
Power and Interface (PI)
Subsystem distributes power and data to the Abacus1 midplane
Cable to connect to serial port on user's PC
User interface software: 32-bit application that runs under Windows
Nominal AC input: 100 to 240 Vac, 50 to 60 Hz
Power consumption: maximum 85 W for entire system
Operating range: 0C to 40C
The item is used, good cosmetic condition , has been removed from service in working condition.
