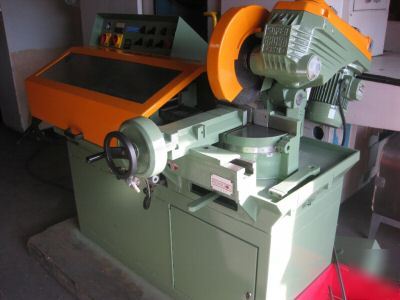

Pedrazzoli super brown fully automatic cold saw.
In absolute excellent condition in & out. This machine has been tested in all function and is in 100% working condition. Fully automatic with programmable infeed up to 9-steps and max feeding length of 5400mm. Features a 14" blade & pnuematic vise.
Max Round cutting diameter 4.5"
Max rectangle cutting 6.25" x 3.5"
# Mechanism for the rotation of head block for angled cuts up to 45 left with locking lever.
# Pneumatic vice with removable anti-burr.
# Pneumatic cylinder for head movement, with brake for speed adjustment.
# Transmission by means of a double expandable pulley for speeds variable between 18 and 93 rpm.
# Head tilting on adjustable self-lubricating bushings.
# 600 mm step feeder controlled by pneumatic cylinder.
# Repeater up to maximum of 9 steps so as to reach a total stroke of 5400 mm.
# Maximum opening of feeder collet = 160 mm.
# Minimum scrap on final cut = 160 mm.
# Feeder speed adjustment valve.
# Emergency push button with key and lockable switch on control panel.
# Blade lubrication-cooling system with electric pump.
# Coolant liquid vat with extractable pump for vat cleaning.
# Complete protection guard with rapid blade change system.
