New zygo view 200 interferometer profilometer

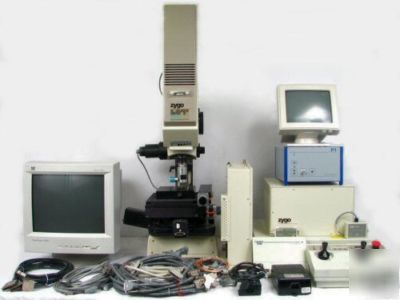

Zygo New View 200 Interferometer Profilometer Used
Model/Part No:200 Maxim GP Our Item ID: 3350
INCLUDES: MetroPro PC Software, v.7.9.0 (Any software license may be purchased directly from Zygo.) Zygo 200 Maxim GP Interferometer: Controller pn: 6300-0112-14/sn: 97-38-62509 Nikon Objective, 2.5x/0.075, TI, WD, 10.3 .6313 Filter Set Manual Turret Manufacture Date September 1997 100-240v, 50/60Hz Unix Computer: Unix software Keyboard & Mouse 17"and 9" Monitors Matrox Corona II Frame Grabber PCI Card (Click here for specs) 115-230v, 50/60Hz Zygo 5-Axis Motorized Tip-Tilt and X-Y Stage: pn: 6300-0155-01/sn: 95-14-6245 Motion Controller Console X-Y Stage 8", w/Vexta Stepper Motors, pn: PK244-01BA-C4 Tip-Tilt Stage, w/EAD Stepper Motors, ZB17GBK-200.4 Converter Concepts P.S., 12.2vdc, model no. XT25-161-00/0 100-240v, 50/60Hz
NewView 200 is the next generation 3D imaging surface structure analyzer. Surface structure analysis is fundamental to many facets of research and industry: from semiconductors and disk drives, to printing plates and fuel injector seals, surface structure controls the performance of the product. Until now, microscopes imaged surface details while surface profilers provided accurate measurements to characterize the details. The NewView 200 combines these two critical technologies. The NewView 200 will change how you look at surfaces.
The NewView 200 is based on the NewView 100 data acquisition and analysis system, plus numerous key advances and the new industrystandard infinite conjugate Nikon optics. The NewView 200 brings you an instrument that goes beyond previously available performance while maintaining full correlation to the NewView 100 system. Like its predecessor, the NewView 200 doesn t just generate a collection of 2D profiles. It conducts advanced mathematical structure analysis, simply, on realistic 3D images. Just focus and measure.
Scanning white light interferometry
Coarse Wheel: 22 mm/turn, with tension adjust
Medium Knob: 4.7 mm/turn, with tension adjust
Lateral Resolution: See Objective Table
Maximum Vertical Step Height: 100 m
Click on the Additional Information link above and reference sections 1-9 through 1-12 for more detailed specifications on this unit including objectives, support stages, and electronic enclosures.
Item Tested?: Tested GoodPhysical Condition: Very Good; Working Condition: Not Tested, or Unable To Test200 | 40x 40x40 | 1
