> New chatillon e-dfe-100 digital force gage,
New chatillon e-dfe-100 digital force gage,

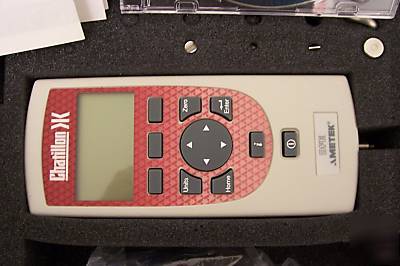

Brand New, E-DFE-100 Digital Force Gage

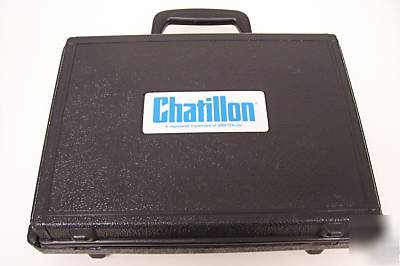

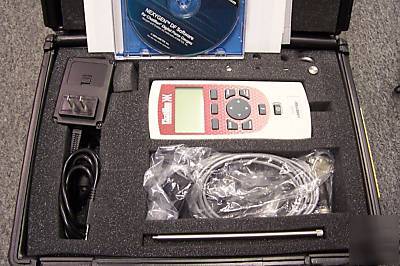

The Chatillon DFE Series is a compact, easy-to-use force gauge designed for economy applications without compromising functionality. Ideal for handheld or test stand applications, the DFE is available with capacities from 2 lbf (1 kgf, 10 N) to 500 lbf (250 kgf, 2500 N). The DFE features an integral loadcell with a measurement accuracy of better than 0.25% full scale. A large, easy-to-read, high resolution dot matrix LCD display supports a variety of standard gauge functions including normal and peak readings, high/low limits, setpoints, pass/fail results, statistical results, loadcell actuation and direction. Loads are displayed in ozf, gf, lbf, kgf and N units. The display can be inverted and displayed results may be hidden from the operator. The DFE gauge may be specified with or without RS232 serial communication. All DFE Series force gauges come with a carrying case, battery adapter/charger, testing accessories and NIST Certificate of Calibration with data. Uncertainty data per ISO/IEC 17025 is supplied standard.
Standard Gauge Measurement Functions
* Peak Tension and Compression Measurement
* High & Low Setpoint Limits
Models - DFE Series (No Outputs)
Models - DFE Series (With Outputs)
The accessories listed above as "Both" are supplied standard with either the DFE or E-DFE Series. Accessories listed as "E-DFE" are supplied standard with the E-DFE Series, but may be ordered separately for your DFE Series. DF Series gauges having a capacity of 100 lbf or below have a #10-32M thread. DF Series gauges with capacities over 100 lbf have a 5/16-18M thread. Accessories are capacity dependent- only one accessory of a like type is supplied based on the force gauge capacity ordered.
