Mazak ultra 550 horizontal machining center probing

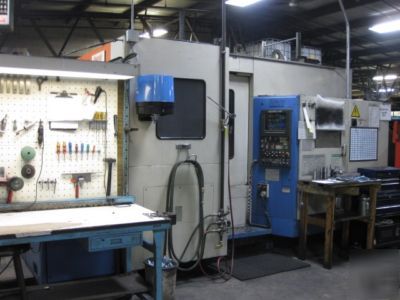

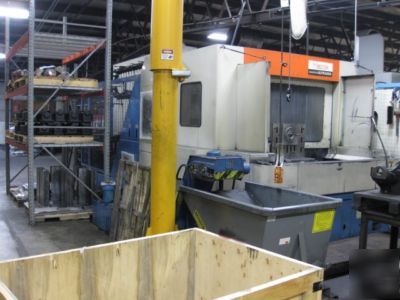

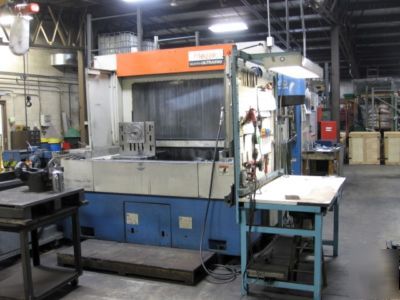

MAZAK ULTRA 550 CNC HORIZONTAL MACHINING CENTER
PALLET LOAD CAPACITY (EVENLY DIST.) 2200 LBS
SPINDLE CENTER TO TABLE TOP 1.97" - 27.56".
SPINDLE NOSE TO TABLE CENTER 5.91" - 31.50"
RAPID TRAVERSE RATE X/Y/Z AXES 1000 IPM

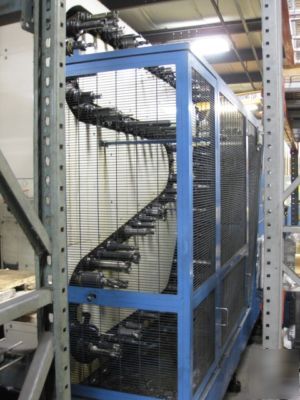

AUTOMATIC TOOL CHANGER 80 POSITIONS
TOOL CHANGE TIME (TOOL TO TOOL) 2.5 SECONDS
APPROX DIMENSIONS 129" x 189" x 114"

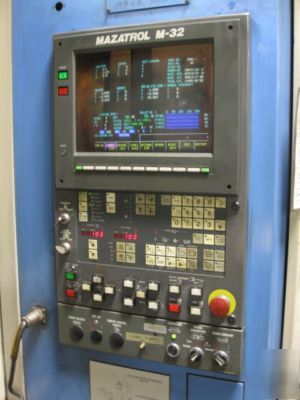

MAZATROL M-32 CNC CONTROL W/14" COLOR CRT
STANDARD PRESSURE COOLANT THRU SPINDLE
RIGID TAPPING (SYNCHRONOUS / SOLID TAPPING)
TOOL LIFE MANAGEMENT, TOOL BREAKAGE DETECTION
RENISHAW PART PROBING, 80 STATION TOOL CHANGER
EIA/ISO PROGRAMMING, FULLY ENCLOSED GUARDS
STANDARD COOLANT SYSTEM WITH TANK & PUMP

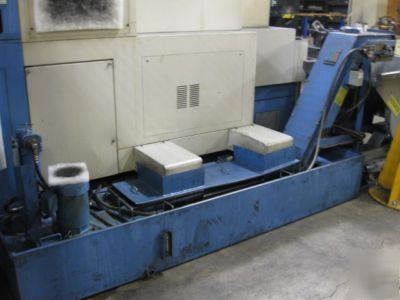

LEFT SIDE DISCHARGE LIFT-UP TYPE CHIP CONVEYOR
DUAL INTERNAL CHIP AUGERS, ALL AVAILABLE MANUALS
LOCATION: IN PLANT UNDER POWER
