> 6161 dake 100 ton spotting press 72" x 116" table 60"
6161 dake 100 ton spotting press 72" x 116" table 60"

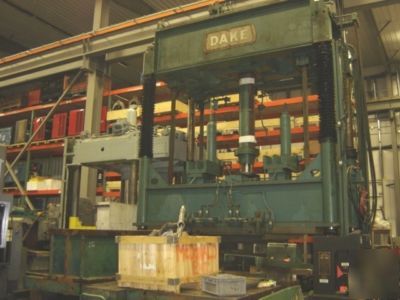

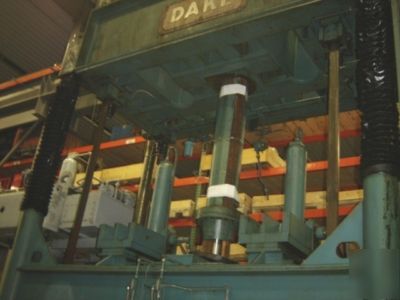

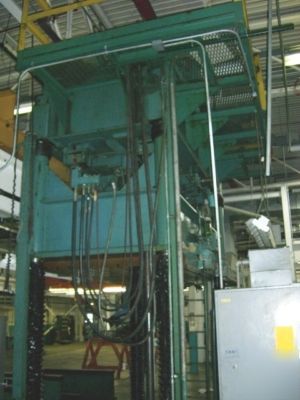

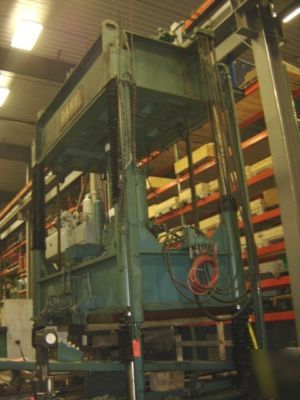

DAKE MODEL 18-509 100 TON 4 POST SPOTTING PRESS

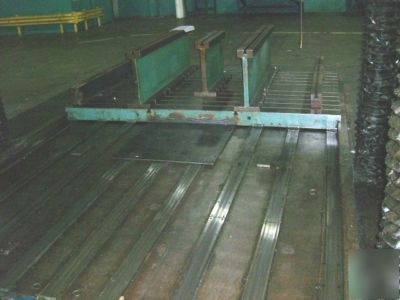

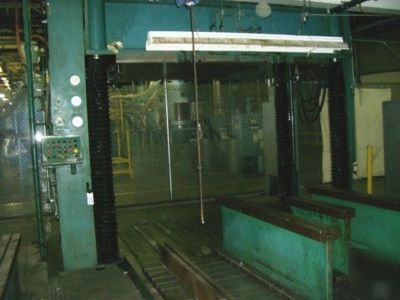

Guided plate/slide cut and swing down bolster plates
Bolster Traverse Times Slideout 105" -Extend 87 seconds -Retract 110 seconds Swing down 50" -Extend 43 seconds -Retract 30 seconds Ram speeds Advance 67" per min Pressing 13" per min Breakaway 24" per min Return 121" per min Pumps Dake 50-110 Denison T50-010
Specifications (continued) Motor 30 Hp 1800 RPM 3 phase 60 cycle 230/460 volts Frame 326VC Oil Mobil DTE #26 Recommended Gallons-90 Max Dim 237" F to B 186" L to R 270" H Approx weight 103,670.
