Image vault PROC04120-250 dvr digital video recorder
Manufacturer: Image Vault Model/Part #: PROC04120-250

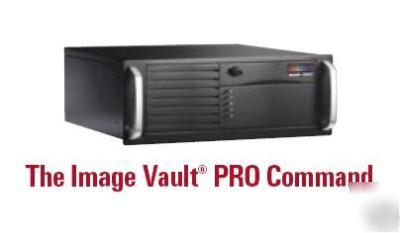

Image Vault PRO-Command Digital Video Recorders
Although more than one model number may be noted below, only one is included in this listing. Be sure you know which model you are looking at before you make your purchase. Additional model numbers are provided for comparison purposes only. You can simply search the Surveillent store for these exact models.
Image Vault provides a low cost solution for digital video recording with our multi-function digital security system. Utilize the Image Vault PRO-Command series of recorders as both a security and management tool saving you time and money.
* Days, weeks, or months of storage depending on hard drive capacity and recording rate.
* 320 x 240; 352 x 240; 640 x 480; or 704 x 480 Capture Resolution; adjustable by camera.
* Evidentiary Video using MPEG4 Compression (Avg ~4 to 6 KB per image at 320 x 240)
* Record continuously, by schedule, or use on demand recording triggers: internal motion detection, POS data triggering, external input (contact closures).
* Automatic camera detection
* Pre-event and post-event recording
* POS Data Interface (Cash Registers, Alarm Panels, Safes, Access Control Systems, ATMs, etc.)
* Interfaces with exception reporting software applications
* Internal Motion Detection
* PTZ RS485 Preset Control Output
* Activate PTZ presets via contact closures
* Field Upgrade via CD or Modem
* Alarm output via contact, email, SMS, or service bureau on camera loss, system reboot, or excessive data events.
* Range Lock write protects events
* Multi-level password protection
* View and record simultaneously
* Browse images locally or remotely
* View multiple cameras simultaneously
* Sync audio to video for playback
* Atomic clock automatic synchronization
* Easily searchable video, audit trail, and direct point of sale database
* All video and data is date/time stamped
* CD/DVD/USB copy video/data for event archival
* Cost Effectively Replaces VCR, VHS Tape, Multiplexer, Remote Access Unit, Camera Switcher, and POS Text Inserter
* Standard Capture Card: 30 fps for every four cameras (30, 60 or 120 fps units); adjustable by camera
* High Speed Capture Card: 30 fps per camera (120, 240 or 480 fps units); adjustable by camera
* 4, 8, or 16 analog camera Inputs (depending on model)
* Color or black & white cameras
* Analog Monitor Output(s)
* Line Level Audio Input(s)
* 160 GB to 3 TB Drives Available
* 16 Contact Closure Inputs
* Windows XPe Embedded Operating System
* 10/100 Base T Network Interface Card
* Uses standard VGA monitor & mouse
* Mouse & Various Cables Included
* 115/230 Vac, 50/60 Hz Power
* No Scheduled Maintenance
* Nationwide Technical Support
PROC04030-X (4 Cameras, 30 fps)
PROC08060-X (8 Cameras, 60 fps)
PROC16120-X (16 Cameras, 120 fps)
PROC04120-X (4 Cameras, 120 fps)
PROC08240-X (8 Cameras, 240 fps)
PROC16480-X (16 Cameras, 480 fps)
X represents any of several available hard drive options; configurations available from 160 GB to 3 TB depending on model. In a typical retail environment using motion detection and default resolution and quality settings, set all cameras to about 2-3fps to store video approximately 1 month (assuming 250 GB for every 4 cameras).
