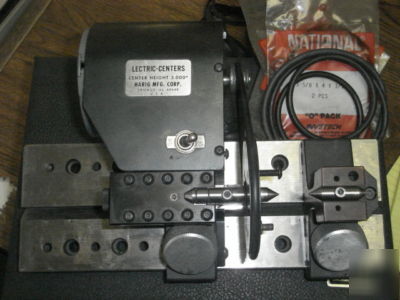

Harig lectric-center with extra rings
Harig's original cylindrical grinding fixture used for precision grinding between centers. Dead center design permits "tenths" accuracies to be easily obtained. Quickly converts a surface grinder to cynlindrical grinding applications for grinding punches, pins reamers, cutters, shanks, and shafts. Hold the piece part in the Lectric-Centers to grind angles, grooves, races, and slots accurately and efficiently. Also can be used for critical inspection. Motorized head and two-speed pulley for fast stock removal. When external grinding between centers on a surface grinder is a must, trust the Lectric-Centers fixture to get the job done accurately. Reliability backed by Harig's trademark service.
* Hardened and ground tool steel base allows grinding between centers up to 7"
* Grind and check parts within 0.00005 TIR
* Fan cooled motor and 2 speed pulley for efficient operation
* Interchangeable hardened tool steel centers are male on one end, female on the other
* Tail-stock taper adjustment allows extremely accurate settings to be obtained
* Head-stock center is on lever controlled sliding ram and has adjusting screw for spring tension
* Head-stock and tail-stock are both adjustable for greater flexibility
* Base-Plate & Tail-Stock witrh addition of rail can be used with Harig fixtures
* Built-in diamond holder for quick dressing of grinding wheels
