Grind cube clamps machinist/toolmaker, hardened 1/4X20

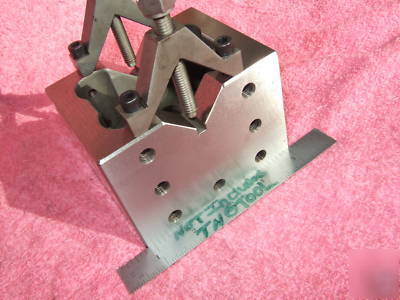

TOOLMAKERS GRINDING CUBE WITH CLAMPS, (1 CUBE ONLY) MANY MORE IN STORE!!!! PRECISION GROUND WITH 2 CLAMPS AS SHOWN TO MAKE BLADES OR ELECTRODES OR USE AS NEEDED. SUPER HANDY STYLE WITH 2 DIFFERENT SIZED TAPPED HOLES IN ADJACENT SIDES. BLOCK WAS GROUND USING A HERMANN SCHMIDT SQUARING BLOCK AND A HERMANN SCHMIDT MAGNA-SINE ON A BALLWAY SURFACE GRINDER BY OHIO TOOLMAKER. THIS IS AN EXCELLENT NEVER USED TOOL!

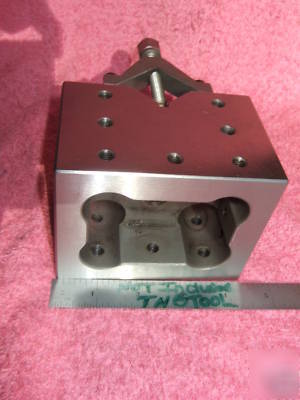

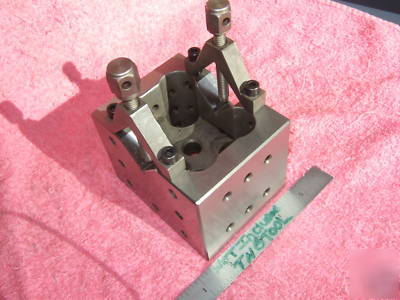

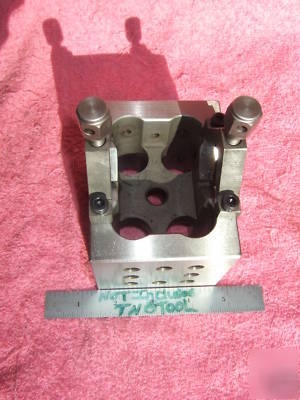

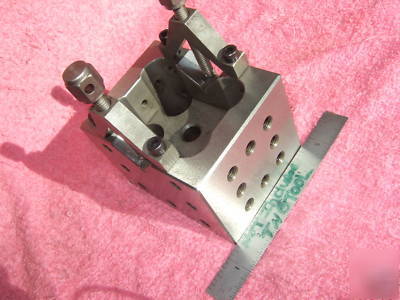

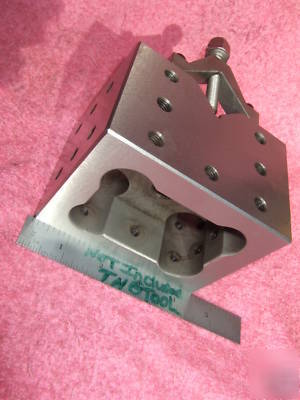

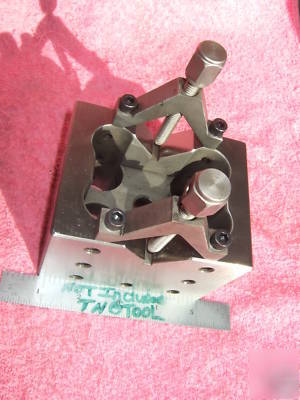

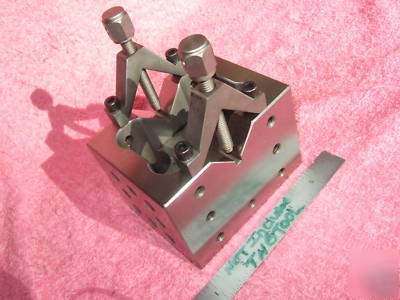

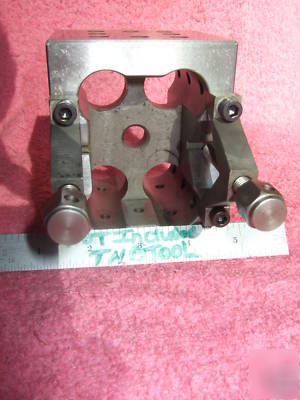

BLOCK MEASURES 3.346" WIDE WITH LENGTH OF 4.297" AND IS 2.964" TALL. VEE WIDTHS ARE 1-7/16" AS SHOWN. PRECISION GROUND VEE'S. BLOCK HAS (13) TAPPED HOLES 1/4" X 20 IN 2 ADJACENT SIDES THEN (15) TAPPED 5/16" X 18 IN OTHER 2 ADJACENT SIDES. (28 TOTAL) TAPPED HOLES NOT COUNTING THE (4) ON TOP FOR CLAMPS! VERY NICE GRIND BLOCK FOR SURE! MANY HOLES GO CLEAR THROUGH INTO CENTER THAT IS RELIEVED SO YOU CAN BOLT IT DOWN TO YOUR BRIDGEPORT OR SINE PLATE AS NEEDED! ALL ARE IN GREAT SHAPE! MADE FROM HARDENED TOOL STEEL. GREAT FOR BLADE GRINDING OR ELECTRODE MANUFACTURING. ALL EDGES PRECISION CHAMFERED AS SHOWN AND IN MINT CONDITION SWEET SWEET TOOL!!! BLOCK WAS STORED IN A GERSTNER BOX AND BASE SOON TO BE LISTED. SEE PICS.
