Amada promecam RG80-30 hydraulic upacting press brake

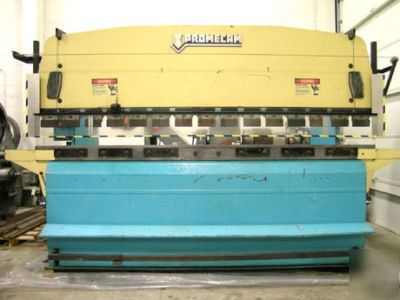

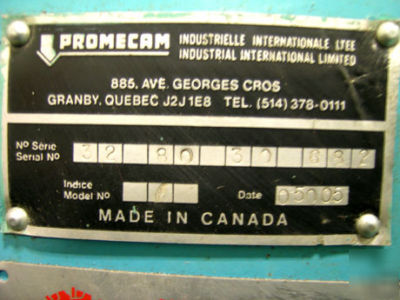

Liberty Machinery Company You are looking at(1) USED - 88 TON PROMECAM (AMADA) MODEL RG80-30 UPACTING HYDRAULIC PRESS BRAKE* Serial No. 328030682Condition - USED SPECIFICATIONS:Capacity - Tonnage 88 Tons
Overall Length of Bed and Ram 120" (10')
Distance between Housings 105" (8'9")
Approximate Overall Dimensions 144"L x 63"W x 85"H
Approximate Weight 11,000 Lbs.

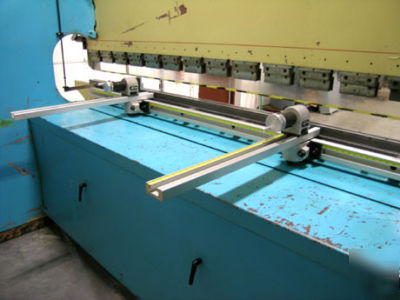

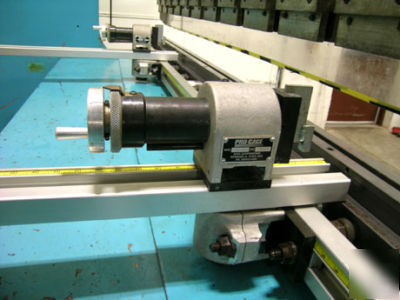

EQUIPPED WITH:25" Progage Model MC204 Micro-Adjustable 4-Axis Manual Backgauge
A - 180 Degrees Lleft to Right
Front to Rear Stop Adjustment Travel(Precision Screw) - 4"
(2) P3A 90 Degree Punch 1-1/4"W x 3-3/4"T x 46" Long & 54" Long X 5/32" R
(3) P9A 90 Degree Gooseneck Punch 3-3/4"T x 72", 48" & 24" Long X 1/16" R
(5) D4 90 Degree Dies 1-1/8" V-Opening, (2) 72", 70", 50" & 11" Long
Full Length Foot Treadle with Foot Pedal Operation
