2002 Sumsung VFD display module unit NEC UL compliant
116.00 (L) 37.00 (W) 18.70 (H) 0.20mm
Character Size (excluding cursor)

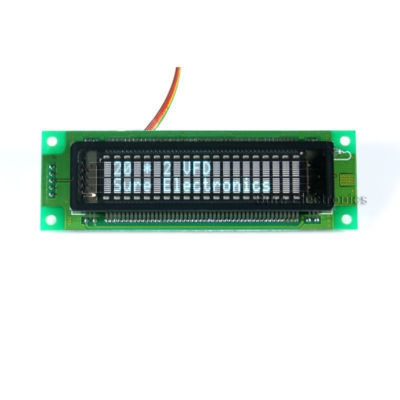

This package includes a 20*2 display module which is a compact and light-weight unit by using new VFD (Vacuum Fluorescent Display) technology. This item can provide excellent visual recognition by means of a clear display with high brightness, less eye fatigue compared to LED (soft light), wide viewing angle, operating at low voltage with low power consumption.
* Simple connection to the host system data bus via three-wired synchronous serial interface (/STB, SCK, SIO)
* Since a DC-DC/AC converter is used, only +5VDC power source is required to operate the module
* High quality of display and luminance
* Compact and light-weight unit by using new VFD technology and flat packed one-chip controller
* Luminance adjustment available by software (4 levels)
* 8 user definable fonts available (CG-RAM font)
* ASCII and Japanese characters (CG-ROM font)
* 20*2 VFD Display Module x 1
The accessories might be a little different from what you've seen on webpage since the accessories you received might be from different batch. However, it won't affect your use. Sure Electronics assumes no liability for any ambiguity caused by the product photos.
Go to Download Center for driver, manual or application
