> 115" x 72" x 432" gray openside planer

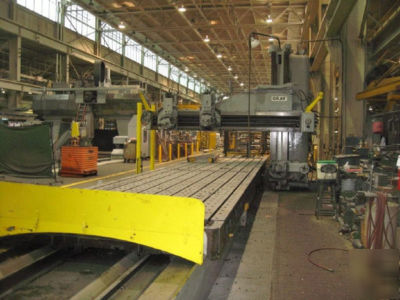

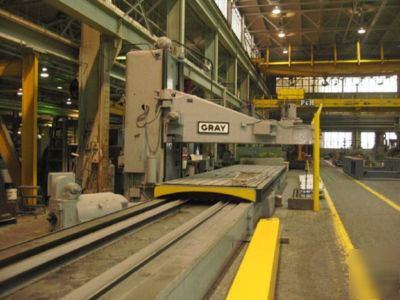

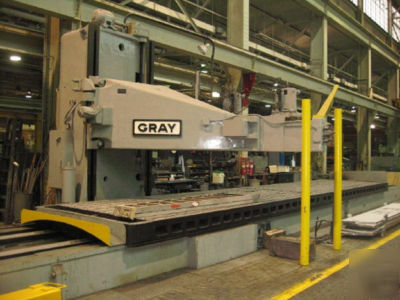

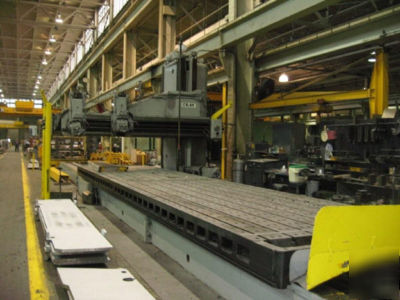

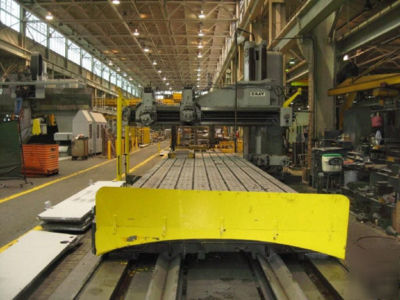

115" x 72" x 432" gray openside planer
115" x 72" x 432" Gray Openside Planer
Table Size, Overall (W x L) .......... 92" x 446"
Table Size, T-Slotted Work Area ...... 92" x 432"
Inside Column To LH Rail Head Tool ... 115"
Maximum Height Under Cross Rail ...... 72"
Cross Rail Face ...................... 24"
Table Stroke ......................... 432"
Table Speeds: ........................ 8-240 SFPM
Bed Width ............................ 92"
Gear Ratio ........................... 4
Machine Weight ....................... 275,107 Lbs
2-Swivelling Vertical Rail Heads
1-Swivelling Horizontal Side Head

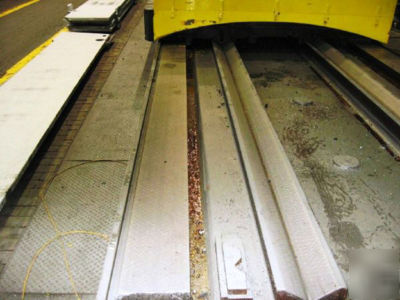

4-Way Bed Design: 2-Vees and 2-Flats
Automatic Tool Lifters For All Heads
150 HP DC Table Drive 440/3/60 Cycle 40-1200 RPM
